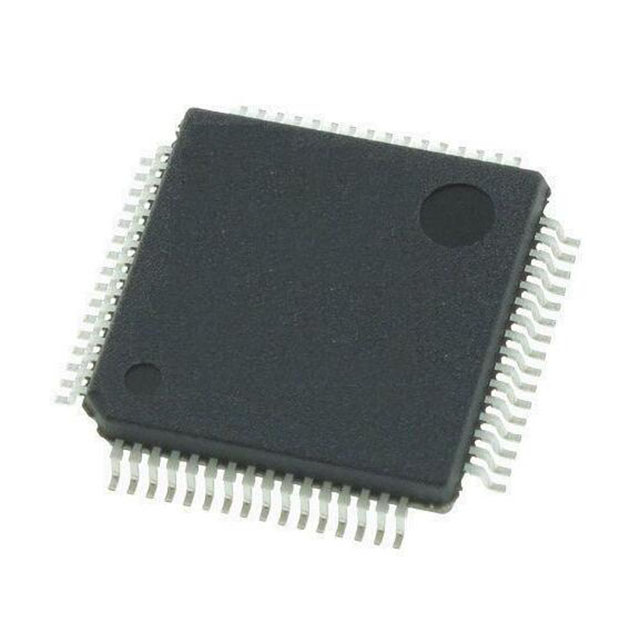

DSPIC33FJ128MC506A-I/PT - 16-bit Digital Signal Controllers (up to 256 KB Flash and 30 KB SRAM) with Motor Control and Advanced Analog

Product Description

DSPIC33FJ128MC506A-I/PT supports a variety of motor control applications, such as brushless DC motors, single and 3-phase induction motors and switched reluctance motors. The dsPIC33F Motor Control products are also well-suited for Uninterrupted Power Supply (UPS), inverters, Switched mode power supplies, power factor correction and also for controlling the power management module in servers, telecommunication equipment and other industrial equipment.

Product Features

Core: 16-bit dsPIC33F CPU

Code-efficient (C and Assembly) architecture

Two 40-bit wide accumulators

Single-cycle (MAC/MPY) with dual data fetch

Single-cycle mixed-sign MUL plus hardware divide

Clock Management

±2% internal oscillator

Programmable PLLs and oscillator clock sources

Fail-Safe Clock Monitor (FSCM)

Independent Watchdog Timer (WDT)

Fast wake-up and start-up

Power Management

Low-power management modes (Sleep, Idle, Doze)

1.35mA/MHz dynamic current (typical)

55μA IPD current (typical)

Motor Control PWM

Up to four PWM generators with eight outputs

Dead Time for rising and falling edges

12.5ns PWM resolution

Programmable Fault inputs

Flexible trigger for ADC conversions and configurations
