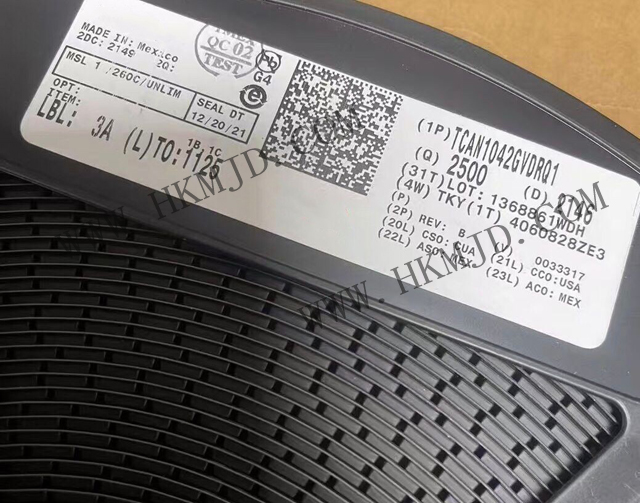

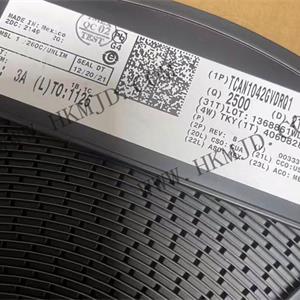

TCAN1042GVDRQ1 - Automotive Fault Protected CAN Transceiver with CAN FD

Product Description

TCAN1042GVDRQ1 - This CAN transceiver family meets the ISO11898-2 (2016) High Speed CAN (Controller Area Network) physical layer standard. All devices are designed for use in CAN FD networks up to 2 Mbps (megabits per second).

Product Features

I/O Voltage range supports 3.3 V and 5 V MCUs

Ideal passive behavior when unpowered

– Bus and logic terminals are high impedance (no load)

– Power up/down with glitch free operation on bus and RXD output

Protection features

– IEC ESD protection up to ±15 kV

– Bus Fault protection: ±58 V (non-H variants) and ±70 V (H variants)

– Undervoltage protection on VCC and VIO (V variants only) supply terminals

– Driver dominant time out (TXD DTO) - Data rates down to 10 kbps

– Thermal shutdown protection (TSD)

Receiver common mode input voltage: ±30 V

Typical loop delay: 110 ns

Junction temperatures from –55°C to 150°C

Available in SOIC(8) package and leadless VSON (8) package (3.0 mm x 3.0 mm) with improved automated optical inspection (AOI) capability

Applications

Automotive and Transportation

All devices support highly loaded CAN networks

Heavy machinery ISOBUS applications – ISO 11783

SAE J2284 High-speed CAN for automotive applications

GMW3122 Dual-wire CAN physical layer

Meets requirements of SAE J2962, GIFT/ICT, ISO16845
