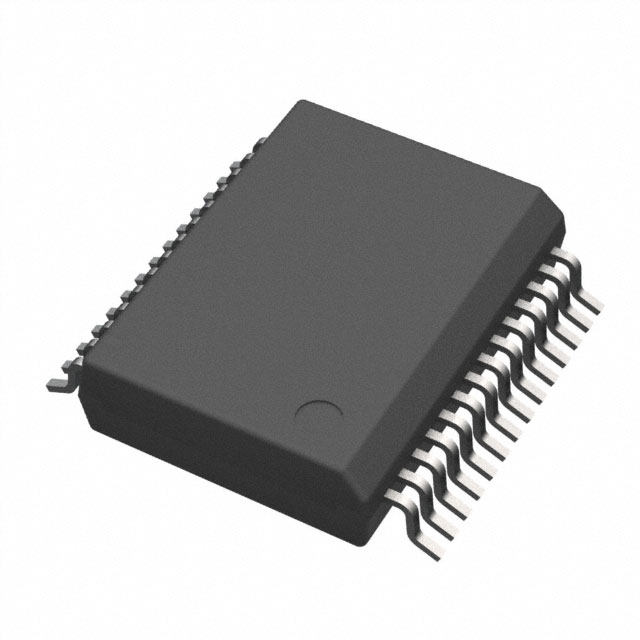

The ADM2863EBRNZ are 5.7 kV rms signal and power isolated RS-485 transceivers. Designed for balanced transmission lines, these devices comply with ANSI/TIA/EIA-485-A-98 and ISO 8482:1987(E) standards. (Two small external 0402 ferrites are used on the isolated power and ground pins. The device incorporates a low electromagnetic interference (EMI), isolated DC-DC converter that eliminates the need for an external isolated power supply.

Product Characteristics

Type: Transceiver

Protocol: RS422, RS485

Number of drivers/receivers: 1/1

Duplex: Full duplex

Receiver hysteresis: 25 mV

Baud Rate: 500 kbps 500 kbps

Voltage - Power: 1.7V, 3V ~ 5.5V

Operating Temperature: -40°C ~ 105°C (TA)

Mounting Type: Surface Mount

Package/Housing: 28-BSSOP (0.295 inches, 7.50 mm wide)

Supplier Device Package: 28-SOIC-W-FP

Applications

● Heating, ventilation, and air conditioning (HVAC) networks

● Industrial fieldbus

● Building automation

● Utility networks

● Energy meters
