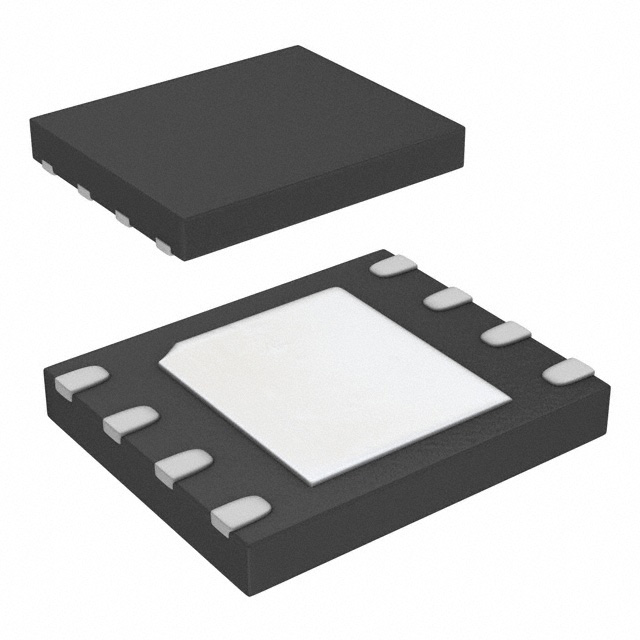

For picture reference, please see the specifications
< >

Commodity Model:SST25PF040CT-40E/MF

Trade Name:SST25PF040CT-40E/MF

Data Manual:SST25PF040CT-40E/MF.pdf

Brand:Microchip

Particular Year:23+

Package:8-WDFN

Delivery Date:New and Original

Stock: 1000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Microchip
Model
SST25PF040CT-40E/MF
Package
8-WDFN
Describe
NOR Flash 2.3V - 3.6V 4Mbit SPI FLASH, 125C Industrial Grade

Product Description

The SST25PF040CT-40E/MF 4Mbit 2.3V to 3.6V SPI Serial Flash Memory features a four-wire SPI compatible interface. This allows for a low pin count package that takes up less board space, thus reducing system cost.SST25PF040CT-40E/MF devices are enhanced devices with a wide 2.3V to 3.6V operating voltage range. The devices are fabricated using proprietary high-performance CMOS SuperFlash technology. The split gate cell design and thick oxide tunnel injector achieve better reliability and manufacturability than other approaches.


Features

Single voltage read/write operation

2.3-3.6V

Serial Interface Architecture

SPI compatible: Mode 0 and Mode 3

High-speed clock frequency

40 MHz

Dual input/output support

Fast read dual output instructions (3BH)

Fast read dual I/O instructions (BBH)

Excellent Reliability

Durability: 100,000 cycles

Data retention timeframe greater than 20 years

Ultra-low power consumption:

Active read current: 5mA (typical)

Standby current: 5µA (typical)

Standby current in power-down mode: 3µA (typical)

Flexible Erase Function

Uniform 4KB sectors

Uniform 64KB overlapping blocks

Fast erase and page programming

Chip erase time: 250ms (typical)

Sector erase time: 40ms (typical)

Block erase time: 80ms (typical)

Page programming time: 4ms/256 bytes (typical)

Page Programming Mode

256 bytes/page

End-of-write detection

Software polls the BUSY bit in the Status Register

Hold pin (HOLD#)

Suspend serial sequence without deselecting the device

Write Protect (WP#)

Enables/disables locking of status registers

Software Write Protect

Write-protect via the block protect bit in the status register

Temperature range

Automotive AEC-Q100 compliant

Industrial+ temperature: -40°C to +105°C

Extended temperature: -40°C to +125°C

Package: 8-pin WDFN (5mm x 6mm)

All devices are RoHS compliant
