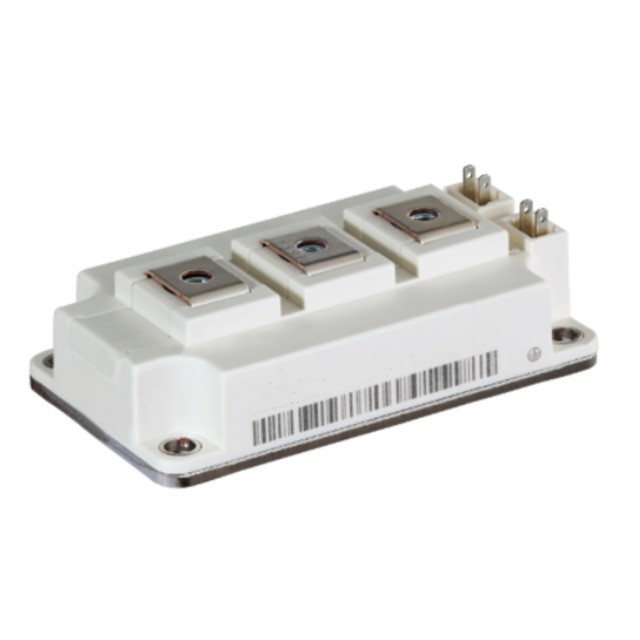

Description: IGBT Module Trench Field Stop Half Bridge 1200 V 800 A Chassis Mount AG-62MM

product properties

Type Discrete Semiconductor Products

Category Transistor - IGBT - Module

Manufacturer Infineon Technologies

Series TrenchStop™

packaging tray

IGBT Type Trench Field Stop

Configure Half Bridge

Voltage - Collector Emitter Breakdown (Max) 1200 V

Current - Collector (Ic) (max) 800 A

Current - Collector Cutoff (Maximum) 100 µA

Input Capacitance (Cies) 122 nF @ 25 V at different Vce

input standard

NTC thermistor None

Operating temperature -40°C ~ 175°C (TJ)

Mounting Type Pedestal Mount

Package/Enclosure Module

Supplier Device Package AG-62MM
