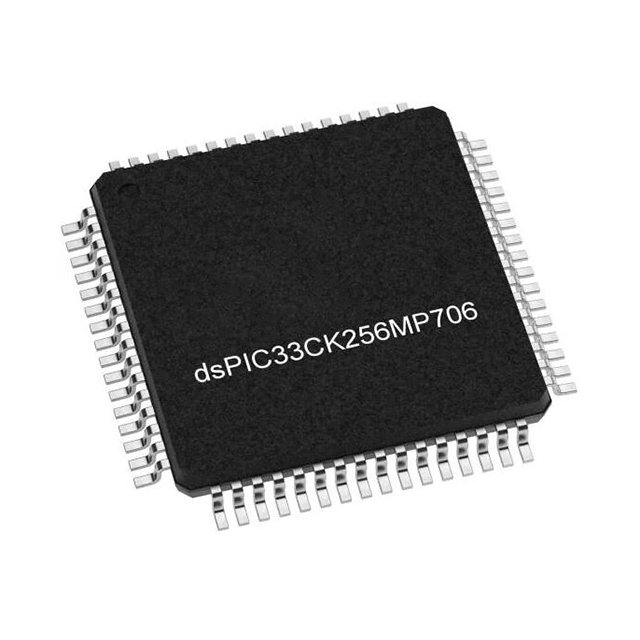

DSPIC33CK256MP706T-I/PT - High-Performance Digital Signal Controllers with High-Resolution PWM and CAN Flexible Data-Rate (CAN FD)

Product Features

Core: dsPIC33CK CPU

256-1024 Kbytes of Program Flash with ECC and 128 Kbytes of Data RAM

Fast Six-Cycle Divide

Flash with Dual Partition for LiveUpdate Capabilities

LiveUpdate

Code Efficient (C and Assembly) Architecture

40-Bit Wide Accumulators

Single-Cycle (MAC/MPY) with Dual Data Fetch

Single-Cycle, Mixed-Sign MUL Plus Hardware Divide

32-Bit Multiply Support

Five Sets of Interrupt Context Selected Registers for Fast Interrupt Response

Zero Overhead Looping

RAM Memory Built-In Self-Test (MBIST)

High-Resolution PWM with Fine Edge Placement

Up to Twelve PWM Channels

250 ps PWM Resolution

Operating Conditions

3V to 3.6V, -40°C to +125°C: DC to 100 MIPS

3V to 3.6V, -40°C to +150°C: DC to 70 MIPS

Communication Interfaces

Three UART Modules: Support for DMX, LIN/J2602 protocols

Three 4-Wire SPI/I2S Modules

Two CAN Flexible Data-Rate (FD) Modules

Three I2C Modules: Support for SMBus

PPS to Allow Function Remap

Two SENT Modules

Applications Include:

– DC/DC converters

– AC/DC power supplies

– Uninterruptable Power Supply (UPS)

– Motor Control: BLDC, PMSM, SR, ACIM
