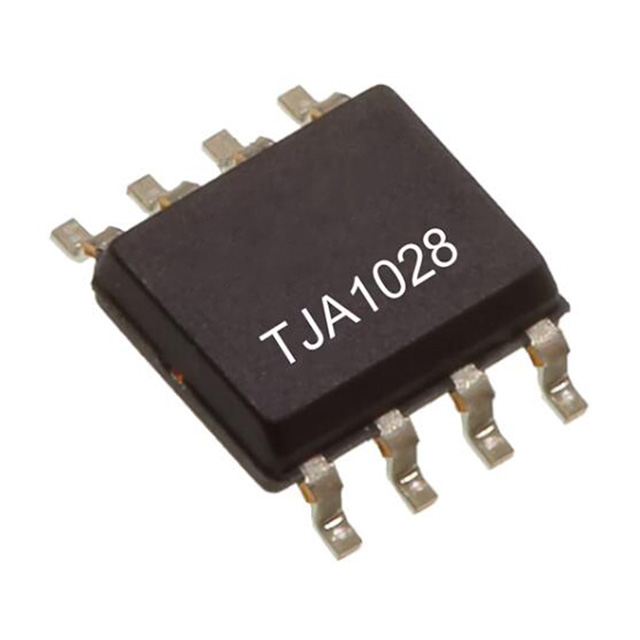

TJA1028BT is a LIN 2.0/2.1/SAE J2602 and ISO 17987-4:2016 (12 V) compliant transceiver with an integrated low-drop voltage regulator. The voltage regulator can deliver up to 70 mA and is available in 3.3 V and 5.0 V variants.

Features and benefits

LIN 2.0/2.1/2.2 compliant

SAE J2602 compliant

Downward compatible with LIN 1.3

Internal LIN responder termination resistor

Voltage regulator offering 5 V or 3.3 V, 70 mA capability

2 % voltage regulator accuracy over specified temperature and supply ranges

Voltage regulator output undervoltage detection with reset output

Voltage regulator is short-circuit proof to ground

Voltage regulator stable with ceramic, tantalum and aluminum electrolyte capacitors

Robust ESD performance; ±8 kV according to IEC61000-4-2 for pins LIN and VBAT

Pins LIN and VBAT protected against transients in the automotive environment (ISO7637)

Very low LIN bus leakage current of < 2 μA when battery not connected

LIN pin short-circuit proof to battery and ground

Transmit data (TXD) dominant time-out function

Thermally protected

Very low ElectroMagnetic Emission (EME)

High ElectroMagnetic Immunity (EMI)

Typical Standby mode current of 45 μA

Typical Sleep mode current of 12 μA

LIN bus wake-up function

K-line compatible
