NMH1000T1 is a hall effect magnetic field switch. The switch is most sensitive to a vertical field passing through the top-to-bottom surfaces, orthogonal to the plane of the application printed circuit board. The switch operates at low voltage, low current, low output data rate, and is a small physical size.

Product Attributes

Function Latch

Technology Hall Effect

Polarization North Pole

Voltage - Supply 1.2V ~ 3.6V

Current - Supply (Max) 650µA

Output Type I²C

Features Sleep Mode

Operating Temperature -40°C ~ 85°C

Mounting Type Surface Mount

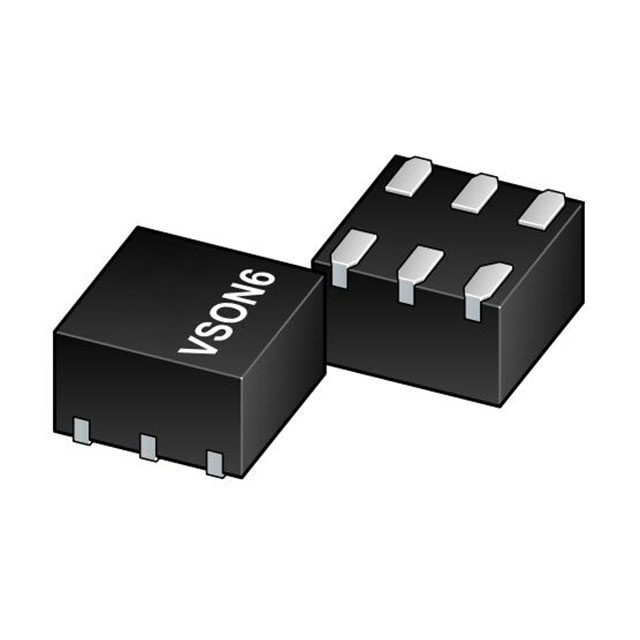

Supplier Device Package 6-VSON (1.4x1.4)

Package / Case 6-VFDFN

Features and benefits

Threshold selection 3-state hardware pin.

Threshold selection data bit(s) in an I2C accessible register.

Sample rate selection 3-state hardware pin.

Sample rate selection data bit(s) in an I2C accessible register.

Mode selection hardware pin to select between standalone or I2C serial interface.

Mode selection data bit(s) in an I2C accessible register.

Two types of output indicate the absence of a magnetic field as compared to an internally set threshold:

– Binary state hardware pin.

– Binary state data bit(s), configurable as assert-high or assert-low, in an I2C accessible register
