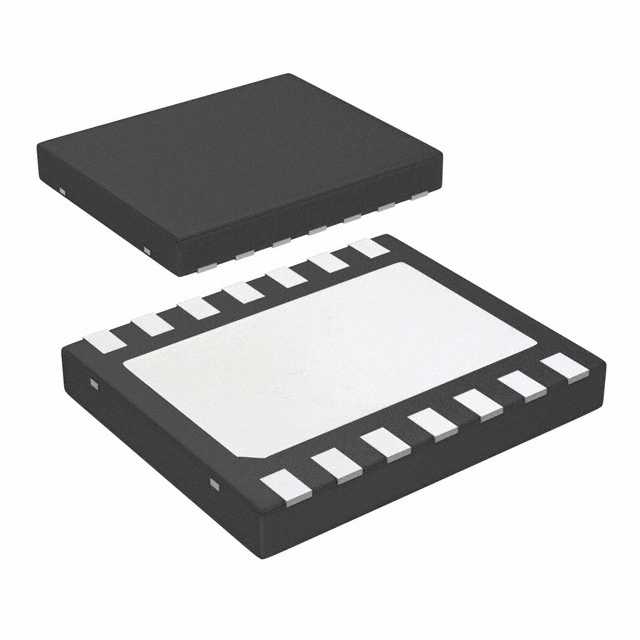

UJA1168ATK is a mini high-speed CAN system basis chip (SBC) containing an ISO 11898-2:2016 and SAE J2284-1 to SAE J2284-5 compliant HS-CAN transceiver supporting CAN FD up to 5 Mbit/s together with a 5 V/100 mA supply for a microcontroller. It also features a watchdog and a serial peripheral interface (SPI).

Feature

Designed for automotive applications ISO 11898-2:2016 and SAE J2284-1 to SAE J2284-5 compliant high-speed CAN transceiver

Hardware and software compatible with the UJA116x product family and with improved EMC performance

±8 kV ESD protection, according to the Human Body Model (HBM) on the CAN bus pins

±6 kV ESD protection, according to IEC TS 62228 on the CAN bus pins, VEXT and on pins BAT and WAKE

CAN bus pins short-circuit proof to ±58 V

Battery and CAN bus pins are protected against automotive transients according to with ISO 7637-3

High-speed CAN transceiver supporting CAN FD active communication up to 5 Mbit/s in the CAN FD data field

Autonomous bus biasing according to ISO 11898-6

Remote wake-up capability via standard CAN wake-up pattern or via ISO 11898-6 compliant selective wake-up frame detection, including CAN FD-passive support

Integrated 5 V / 100 mA voltage regulator for microcontroller supply

Support for microcontroller RAM retention down to a battery voltage of 2 V

Integrated 5 V / 30 mA voltage regulator for sensor supply

Protected against short-circuits to GND and to the battery (can handle negative voltages as low as -18 V)

Standby and Sleep mode featuring very low supply current

Transmit data (TXD) dominant time-out function

Mode control via the serial peripheral interface (SPI)

Watchdog with independent clock source

Local wake-up via the WAKE pin

High-voltage output (INH) for controlling an external voltage

Configuration of selected functions via non-volatile memory

Applications

Automotive

Body Control

Door Control

Electric Power Steering (EPS)

Gear Shifters

Heating Ventilation and Air Conditioning (HVAC)

HVAC Climate Control

Seat Pretensioner

Sunroof Control

Tire Pressure Monitoring Systems (TPMS)

Window Control
