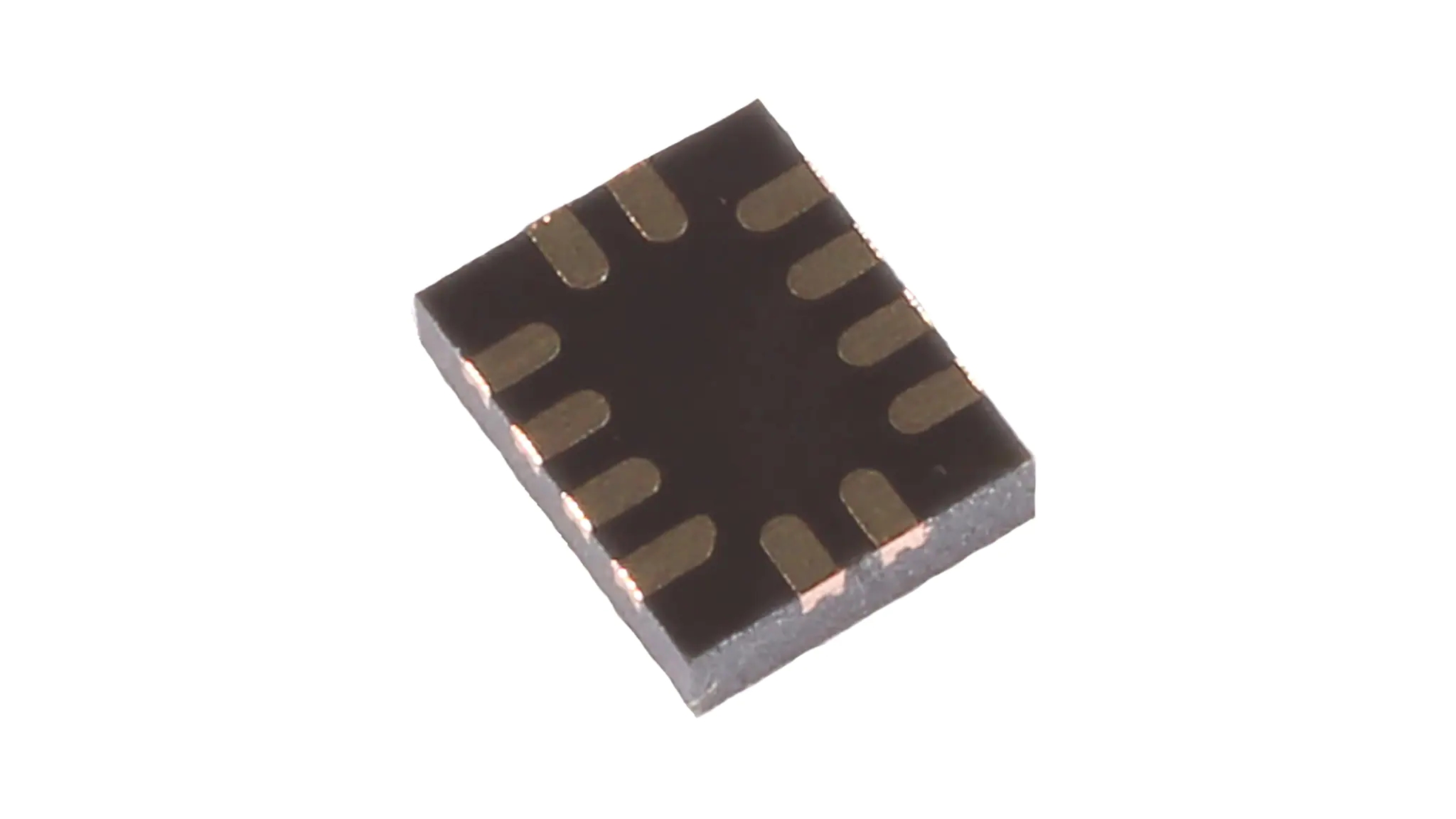

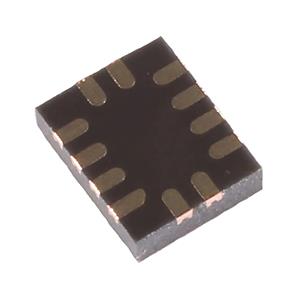

PTN3222EUKZ 1-Port eUSB2 to USB2 Redrivers perform translations between eUSB2 and USB2 signaling schemes.

Feature

1-port eUSB2 to USB2 redriver functionality

Conforms to USB2 specification along with relevant ECNs

Conforms to eUSB2 specification v1.1

Supports host-only repeater, device-only repeater, and dual-mode repeater role

Supports all USB2.0 data rates

Low-speed operation (1.5Mbps)

Full-speed operation (12Mbps)

High-speed operation (480Mbps)

Supports RAP accesses for a select set of register accesses

Integrated and selectable pullup and pulldown resistors on both eUSB2 and USB2 ends

Signal Integrity (SI) configurability

eUSB2 – Tx de-emphasis, Rx equalization, Rx squelch threshold, Tx output swing

USB2 – HS disconnect detection threshold, Rx squelch threshold, Rx termination, Rx equalization, Tx de-emphasis, Tx slew rate, Tx output swing

Supports BC1.2 power provider CDP configuration capability in host mode

Low current consumption

Supports eUSB2 and USB2 power management

Implements Deep standby mode for lowest power consumption

Robustness features

USB2 data pins tolerate 5.5V (DC) for 24 hours

USB2 data pins withstand short to GND for 24 hours

USB2 data pins withstand collision on DP/DN pins due to faulty USB devices

GPIOs and high-speed data pins are back power safe

I2C target interface supports standard mode, fast mode, and fast mode plus

Power supplies - VDD3V3, VDD1V8

ESD HBM 2kV CDM 500V

Operating ambient temperature range -40°C to +85°C

Available in WLCSP12 and QFN12 package

Applications

eUSB2 to USB2 repeater function in platforms (e.g., hosts, devices, hubs, routers, protocol bridges, etc.) with Standard A/ Standard B/ Micro-B/USB Type-C connector scenarios

Host-only repeater

Device only repeater

Dual role repeater (as determined dynamically in the application)
