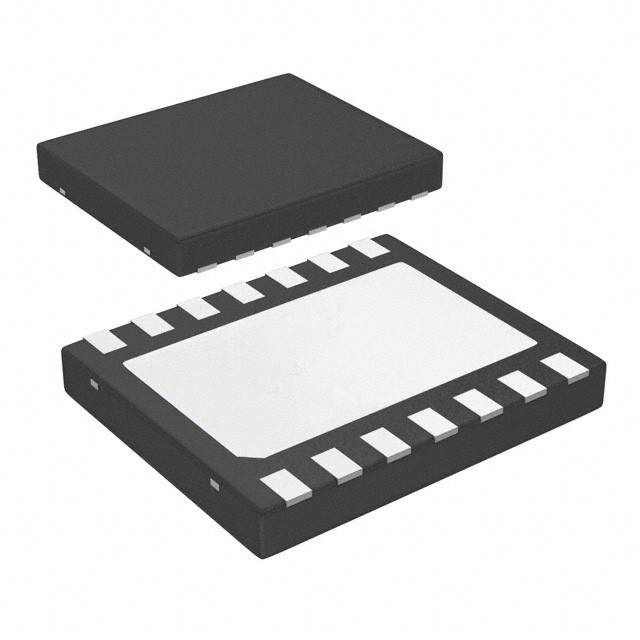

The TJA1128HTK is a LIN mini System Basis Chip (SBC) featuring a LIN transceiver, low dropout regulator (LDO), window watchdog, two WAKE inputs, one general purpose input (GPI), and one high voltage multi-purpose (HVMPO) output.

The regulators draw up to 85 mA and provide output voltages of 3.3 V and 5.0 V. The TJA1128 operates in very low-current standby and sleep modes with bus and local wake-up functions.

Function

General Features

Battery operating voltage range: (3.3 V) 5.0 V to 28 V

Very low current consumption in sleep and standby modes

Sleep mode (regulator off): 14 μA typical

Standby mode (regulator on): 22 μA typical

Remote wake-up capability via LIN pin

Local wake-up via WAKE1 and WAKE2 pins

Configurable level-sensitive wake-up detection

Periodic sample wake-up detection option, controlled by pin synchronisation bias

HVMPO

Wake-up source identification

Configurable high-voltage multi-purpose output (HVMPO)

Bias-controlled output for periodic wake-ups

Limp mode output

Bias control output for battery monitoring circuitry

General purpose input (GPI) control outputs

Provides limp mode function in case of high temperature, watchdog service failure, VCC undervoltage, and RSTN short circuit

Thermal shutdown

Bi-directional reset pin with variable power-on reset length

LIN Transceiver / Standards Compliance

ISO 17987-4:2016 (12 V LIN) compliant

LIN 2.0, LIN 2.1, LIN 2.2, and LIN 2.2A compliant

SAE J2602-1 compliant

K-wire compatible

Baud rates up to 20 kBd

LIN high-speed mode with fast LIN slope to support high baud rates (> 20 kBd)

Integrated termination resistors for LIN slave applications

TXD-dominated timeout function

Designed for automotive applications

AEC-Q100 compliant

Load-surge pulse protection up to 43 V

Provides ±8 kV electrostatic discharge (ESD) protection based on human body modelling (HBM) on LIN bus pins

Provides ±6 kV ESD protection based on BAT pin, WAKE1 pin, WAKE2 pin, and ±8 kV ESD protection based on LIN bus pins

Anti-transient protection for bus terminals and battery pins in automotive environments (ISO 7637)

LIN bus pins have battery and ground short circuit protection

Package: Pinless HVSON14 package (3.0 mm x 4.5 mm) supporting enhanced automatic optical inspection (AOI) functionality and low thermal resistance
