Service Telephone:86-755-83294757

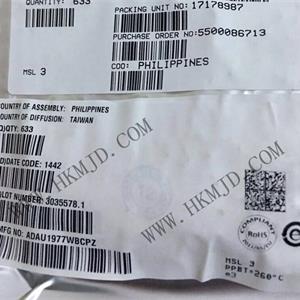

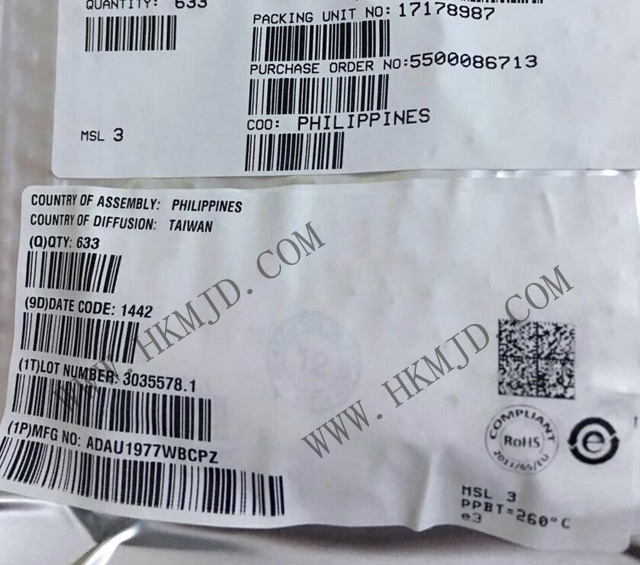

Trade Name:ADAU1977WBCPZ
Data Manual:ADAU1977WBCPZ.pdf
Brand:ADI
Particular Year:23+
Package:40-LFCSP
Delivery Date:New original
Stock: 2000pcs
The ADAU1977WBCPZ integrates four high-performance analog-to-digital converters (ADCs) with 10 V rms performance in their direct-coupled inputs. The ADC uses a multibit sigma-δ architecture with a continuous-time front end that enables low EMI performance. It can be directly connected to a electret microphone (ECM) and provide the required bias to power the microphone. The built-in diagnostic circuit detects faults on the input line, including comprehensive diagnostics for microphone input faults. The following faults can be reported: battery short circuit, microphone bias short circuit, ground short circuit, short circuit between positive and negative input pins, and open input pin.
specification
Type: ADC, Audio
Number of channels: 4
Resolution (bit) : 24 b
Sample rate (per second) : 192k
Data interface: I²C, SPI
Power supply voltage source: single power supply
Voltage - Power supply: 3.3V
Operating temperature: -40°C ~ 105°C
Mounting type: Surface mount type
Package/housing: 40-WFQFN bare pad, CSP
Supplier package: 40-LFCSP-WQ (6x6)
Basic product number: ADAU1977
Model
Brand
Package
Quantity
Describe
TI
DSBGA-60
2000
8-Channel 16-Bit Analog Controllers With Current-Output DACs and Mux Output
ADI
BGA-81
3000
Quad, 14-bit, 4 MSPS, Simultaneous Sampling, μModule Data Acquisition Solution
