Trade Name:AMC3301QDWERQ1
Data Manual:AMC3301QDWERQ1.pdf
Brand:TI
Particular Year:23+
Package:16-SOIC
Delivery Date:New original
Stock: 2000pcs
AMC3301QDWERQ1 is a precision, isolated amplifier optimized for shunt-based current measurements.
Feature
3.3-V or 5-V single supply with integrated DC/DC converter
±250-mV input voltage range optimized for current measurement using shunt resistors
Fixed gain: 8.2
Low DC errors:
Offset voltage: ±150 µV (max)
Offset drift: ±1 µV/°C (max)
Gain error: ±0.2% (max)
Gain error drift: ±40 ppm/°C (max)
Nonlinearity: ±0.04% (max)
High CMTI: 85 kV/µs (min)
System-level diagnostic features
Meets CISPR-11 and CISPR-25 EMI standards
Safety-related certifications:
6000-VPK reinforced isolation per DIN VDE V 0884-11
4250-VRMS isolation for 1 minute per UL1577
Fully specified over the extended industrial temperature range: –40°C to +125°C
Applications
Isolated shunt-based current sensing in:
HEV/EV charging piles
HEV/EV on-board chargers (OBC)
HEV/EV DC/DC converters
HEV/EV traction inverters
Model
Brand
Package
Quantity
Describe
ADI
QFN-24
2500
A four-channel multiplexed transresistance amplifier providing output multiplexing
TI
28-VQFN
3000
Four-channel differential output transresistance amplifier with integrated multiplexing
TI
16-SOIC
1000
Automotive, Precision, 2 V Input, Enhanced Isolation Amplifier With Integrated DC/DC Converter
TI
VQFN-16
1000
Automotive programmable gain differential output high-speed transimpedance amplifier
A: all online goods on the shelves can be ordered online, but considering the large liquidity of spot inventory, it is not possible to achieve 100% accuracy at present. In case of any abnormality, you can contact our company online and give the corresponding solution.
A: our self-supporting products are from cooperative domestic and foreign original factories or authorized agents, and the source can be traced to ensure the original and authentic products.
A: at present, our self-employed brands TI,ST,ADI,NXP,LATTICE,CYPRESS,INFINEON,XILINX and other first-line brands. Other channels are the original factory and agency channels. If necessary, we can communicate and confirm according to the specific brand and model.
A: You can inquire through the website, or by phone and email.
A: the delivery date is marked in most commodity information. You can estimate the delivery time of the commodity according to the delivery date. The specific arrival time depends on the warehouse where the commodity is located and the logistics mode you choose.
A: you can issue ordinary invoices for individual users or special VAT invoices for enterprise users.
Texas Instruments (TI), abbreviated as TI, is the worlds leading semiconductor company providing innovative digital signal processing (DSP) and analog device technologies for real-world signal processing. In addition to the semiconductor business, it …
DP83TC811SWRNDRQ1

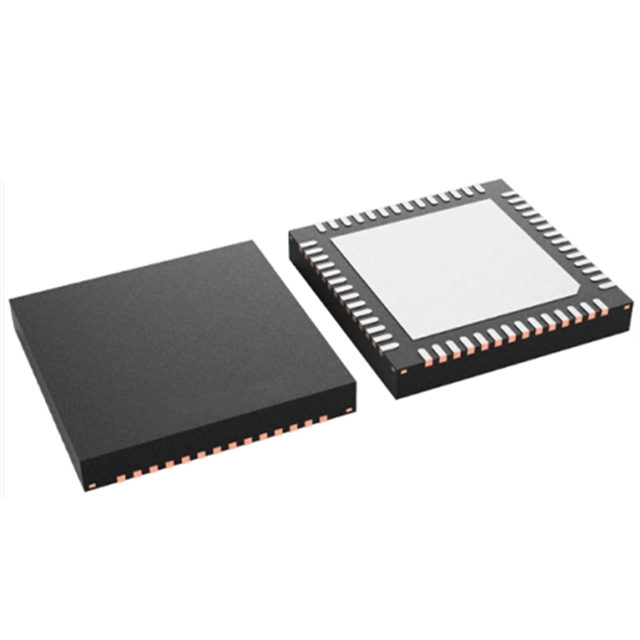

The DP83TC811SWRNDRQ1 Low Power Automotive PHYTER 100BASE-T1 Ethernet Physical Layer Transceiver provides the physical layer functionality required for transmitting and receiving data over shielded single twisted pair cable. The device enables xMII fl…ADS1212U

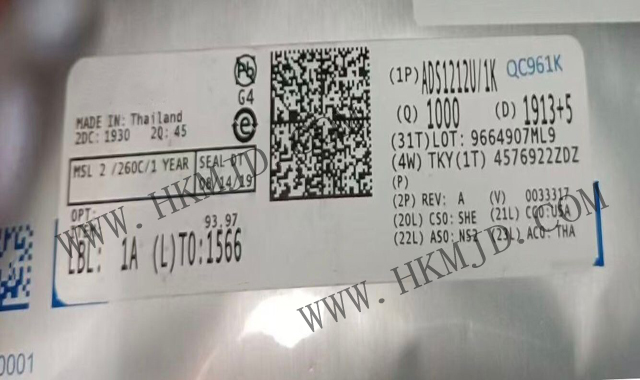

The ADS1212U is a high-precision 22-bit sigma-delta analog-to-digital converter (ADC) in an 18-pin SOIC package designed for applications requiring high-resolution, low-noise measurements.TMS320F28374DZWTS

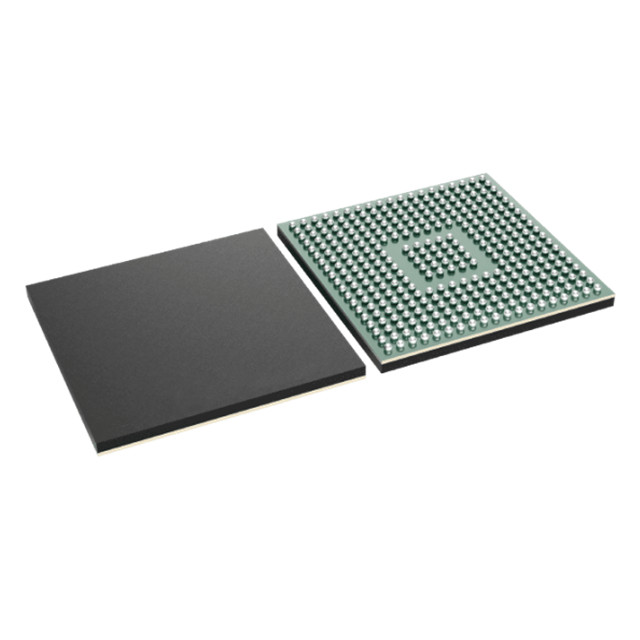

The TMS320F28374DZWTS is a powerful 32-bit floating-point microcontroller unit (MCU), specifically designed for advanced closed-loop control applications such as industrial motor drives, photovoltaic inverters and digital power supplies, electric vehi…F28P650SK6PTP

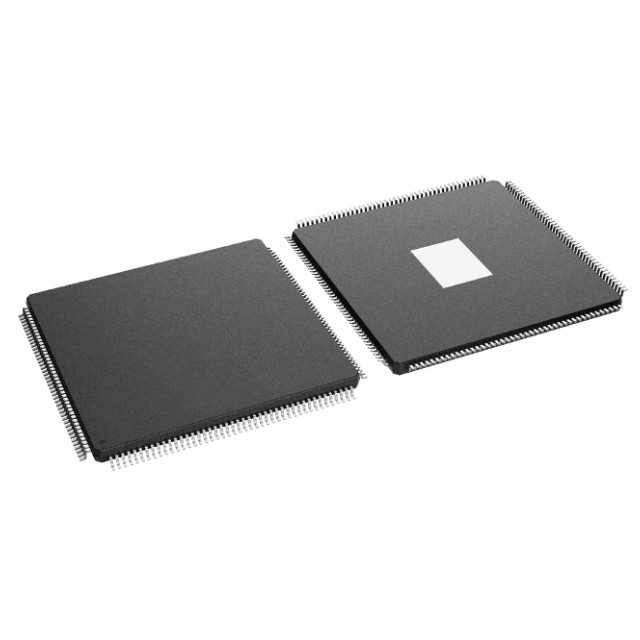

The F28P650SK6PTP microcontroller is a 32-bit microcontroller unit (MCU) in the C2000™C28x Piccolo™ series produced by TI, and is mainly used in industrial and automotive applications. Its technical parameters and applications are as follows:Technic…F28P650SH7PTP
