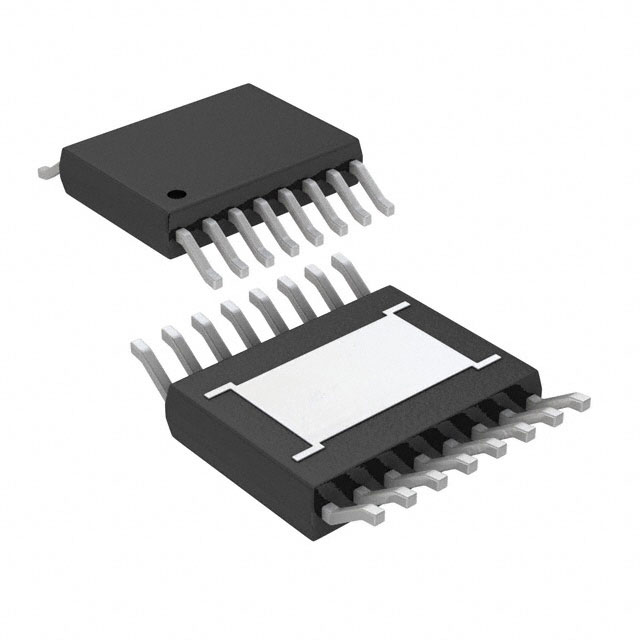

The LT3668EMSE is a monolithic triple power supply consisting of a 400mA buck switching regulator and two 200mA low level regulators. This provides a complete, robust power supply solution for applications requiring high current and low dropout voltage. This provides a complete and robust power solution for applications requiring a sensor power supply to closely track the power supply of a measurement-specific integrated circuit (ASIC). Each tracking LDO has an output current of 200mA and a typical voltage drop of 340mA.

Product Attributes

Topology: Buck (1), Linear (LDO) (2)

Number of Outputs 3

Frequency - Switching: 250kHz ~ 2.2MHz

Voltage/Current - Output 1: 1.2V ~ 39.4V, 400mA

Voltage/Current - Output 2: 1.1V ~ 10V, 200mA

Voltage/Current - Output 3: 1.1V ~ 10V, 200mA

With LED Driver: None

With Monitor With Monitor: None

With Sequencer: None

Voltage - Supply 1.6V ~ 40V

Operating Temperature: -40°C ~ 125°C

Mounting Type Surface Mount

Package/Housing: 16-TFSOP (0.118 inch, 3.00 mm wide) Exposed Pad

Supplier Device Package: 16-MSOP-EP

Applications

● Fail-safe sensor power supplies

● Automotive and industrial power supplies

● Portable Instrument Power Supplies
