LTC3553EUD-2 is a micropower, highly integrated power management and battery charger IC for single-cell Li-Ion/Polymer battery applications. It includes a PowerPath manager with automatic load prioritization, a battery charger, an ideal diode and numerous internal protection features.

Feature

12μA Standby Mode Quiescent Current (All Outputs On)

Seamless Transition Between Input Power Sources: Li-Ion/Polymer Battery and USB

240mΩ Internal Ideal Diode Provides Low Loss PowerPath™

High Efficiency 200mA Buck Regulator

Always-On 150mA Low Dropout (LDO) Linear Regulator

Pushbutton On/Off Control With System Reset

Full Featured Li-Ion/Polymer Battery Charger

Programmable Charge Current With Thermal Limiting

Instant-On Operation With Discharged Battery

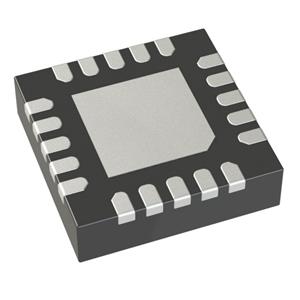

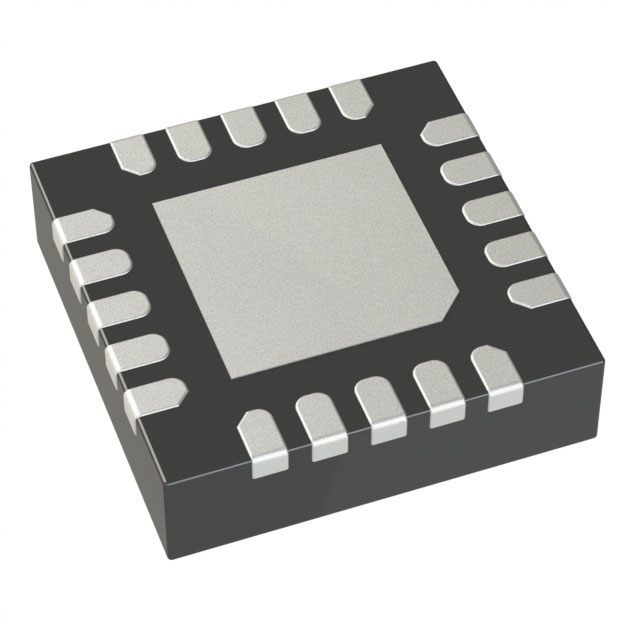

3mm × 3mm × 0.75mm 20-Pin QFN Package

Applications

USB-Based Handheld Products

Portable Li-Ion/Polymer Based Electronic Devices

Wearable Electronics

Low Power Medical Devices
