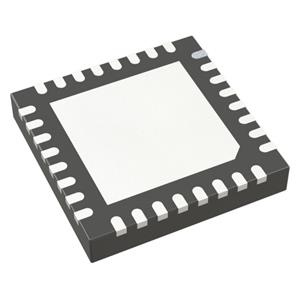

The AD5758BCPZ is a single-channel, voltage- and current-output digital-to-analog converter (DAC) powered from an AVSS -33 V (min) to AVDD1 +33 V (max) supply, with a maximum operating voltage of 60 V between the two supply rails.On-chip Dynamic Power Control (DPC) utilises an on-chip power supply optimised for minimum on-chip power consumption by a The step-down DC-DC converter regulates the supply voltage (VDPC+) of the output driver circuitry to VIOUT over a range of 5 V to 27 V, allowing for low package power consumption. the CHART pin couples the HART® signal to the current output.

Product Attributes

Type: DAC

Number of channels: 1

Resolution (bits): 16 b

Data Interface: SPI

Voltage - Supply: -33V ~ 33V, 3V ~ 5.5V

Operating Temperature: -40°C ~ 115°C

Mounting Type: Surface Mount

Package/Shell: 32-VFQFN Exposed Pad, CSP

Supplier Device Package: 32-LFCSP (5x5)

Applications

● Process Control

● Actuator control

● Channel isolated analogue outputs

● Programmable Logic Controller (PLC) and Distributed Control System (DCS) applications

● HART network connections
