The IPW60R099P7 is a revolutionary technology for high voltage power MOSFETs. (SJ) principle design and is pioneered by Infineon Technologies. The device follows the successful CoolMOS™P6 series. It combines the advantages of a fast switching SJMOSFET with outstanding ease of use, e.g. very easy to use. In addition, extremely low switching and conduction losses make switching applications more efficient, compact and cooler at low temperatures.

Product Characteristics

Transistor type: N-channel transistor

Technology: MOSFET (Metal Oxide)

Drain-to-source voltage (Vdss): 600 В

Current at 25°C - Continuous Drain (Id): 31A (Tc)

Supply Voltage (Max Rds On, Min Rds On): 10 Ω: 10 В

Switching Resistance at Different Id, Vgs (Max): 99 mOhm at 10.5A, 10 V

Vgs(th) at different Id (max): 4 V @ 530 µA

Gate charge (Qg) at different Vgs (max): 45 nK at 10 V

Vgs (max): ±20 V

Input capacitance (Ciss) at varying Vds (max) 1952 pF @ 400 V

Power Dissipation (Max): 117 W (Tc): 117 W (Tc).

Operating Temperature: -55°C ~ 150°C (TJ)

Mounting type: Through-hole

Scope of delivery: PG-TO247-3

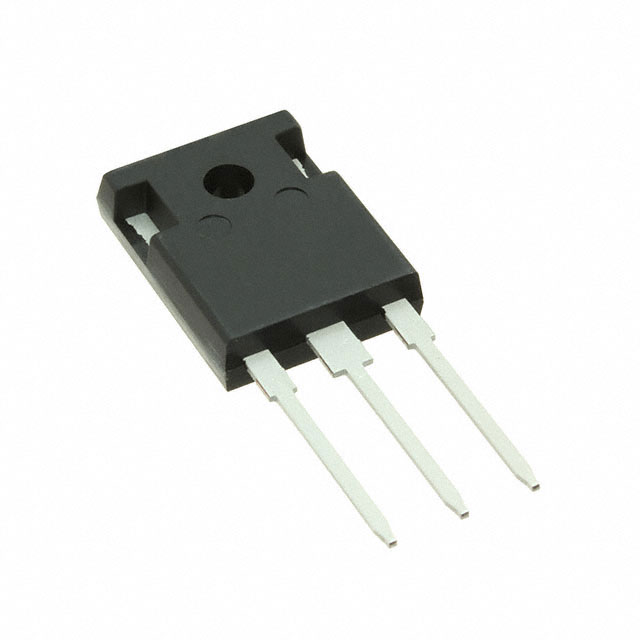

Packaging / Case: TO-247-3

Applications

● PFC stages, hard-switching PWM stages and passive switching stages

● PCSilverbox, adapters, LCD&PDPTV, lighting, servers, telecom, and UPS.
