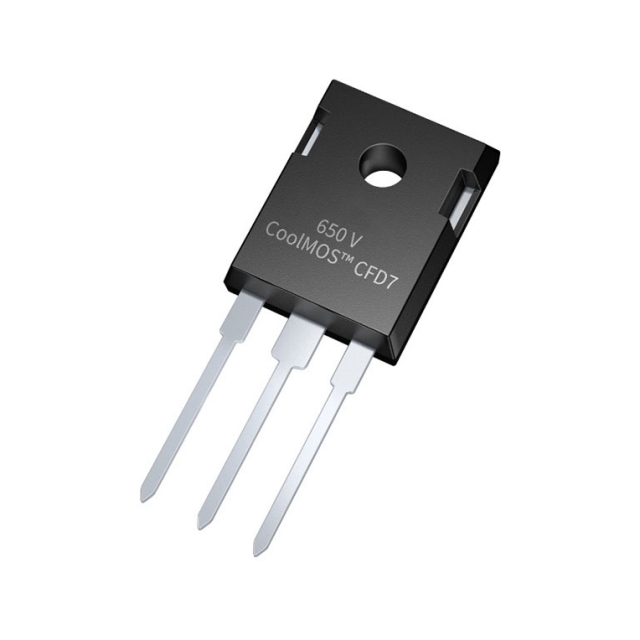

The IPW65R041CFD7 extends the voltage ratings offered by the CFD7 series and is a successful complement to the 650VCoolMOS™CFD2.The CFD7 series extends the voltage ratings offered by the CFD7 series and is a successful replacement for the 650VCoolMOS™CFD2. Highest efficiency in resonant switching topologies such as LLC and phase-shifted full bridge (ZVS). As part of Infineon's fast body diode portfolio, this new product family combines all the advantages of fast switches.

Product Characteristics

Transistor type: N-channel transistor

Technology: MOSFET (Metal Oxide)

Drain-to-source voltage (Vdss): 650 В

Current at 25°C - Continuous Drain (Id): 50 A (Tc)

Supply voltage (max. Rds on, min. Rds on): 10 В

Switching Resistance (Max) at Different Id, Vgs: 41 mOhm @ 24.8A, 10V

Vgs(th) at different Id (max): 4.5V @ 1.24mA

Gate charge (Qg) at different Vgs (max): 102 nK @ 10V

Vgs (max): ±20 V

Input capacitance (Ciss) at different Vds (max): 4975 pF @ 400 V 4975 pF @ 400 V

Power Dissipation (Max): 227 W (Tc): 227 W (Tc).

Operating Temperature: -55°C ~ 150°C (TJ)

Mounting type: Through-hole

Scope of delivery: PG-TO247-3

Packaging / Case: TO-247-3

Applications

● Suitable for soft switching topologies

● Optimised for phase shifted full bridge (ZVS), LLC applications - servers, telecom, EVC charging, solar energy
