The IPW60R037CSFD is an optimised device designed specifically for the off-board EV charging market segment. In addition, it is equipped with an integrated cell body diode and a significantly reduced reverse recovery charge (Qrr), resulting in the highest reliability in resonant topologies. These features fulfil the efficiency and reliability criteria for on-board electronic ballasts and it also supports high power density solutions.

Product Characteristics

Transistor Type: N-Channel Transistor

Technology: MOSFET (Metal Oxide)

Drain-to-source voltage (Vdss): 600 В

Current at 25°C - Continuous Drain (Id): 54A (Tc)

Supply Voltage (Max Rds On, Min Rds On): 10 Ω: 10 В

Switching Resistance (Max) at Various Id, Vgs: 37 milliohms @ 32.6A, 10V

Vgs(th) at various Id (max): 4.5V @ 1.63mA

Gate charge (Qg) at different Vgs (max): 136 nK @ 10V

Vgs (max): ±20 V

Input capacitance (Ciss) at different Vds (max): 5623 pF @ 400 V 5623 pF @ 400 V

Power Dissipation (Max): 245 W (Tc): 245 W (Tc).

Operating Temperature: -55°C ~ 150°C (TJ)

Mounting Type: Through Hole

Power Supply Included: PG-TO247-3

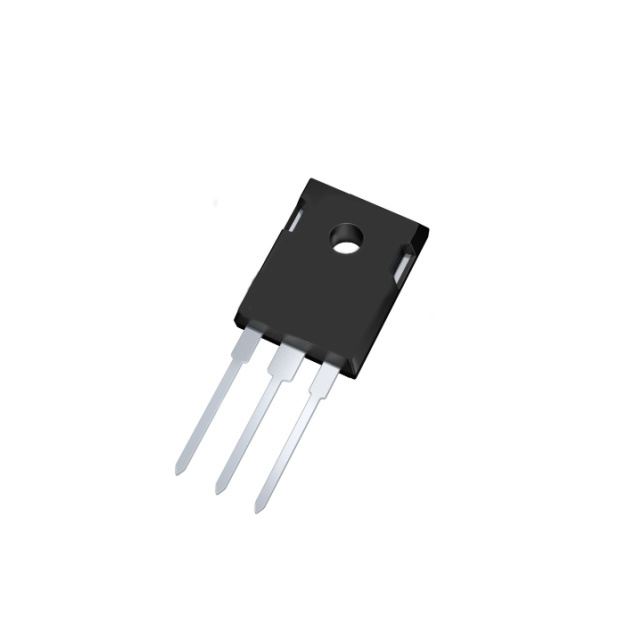

Package/Housing: TO-247-3

Applications

● Suitable for soft and hard switching topologies

● Optimised for phase shifted full bridge (ZVS), LLC & PFCA applications - EV charging
