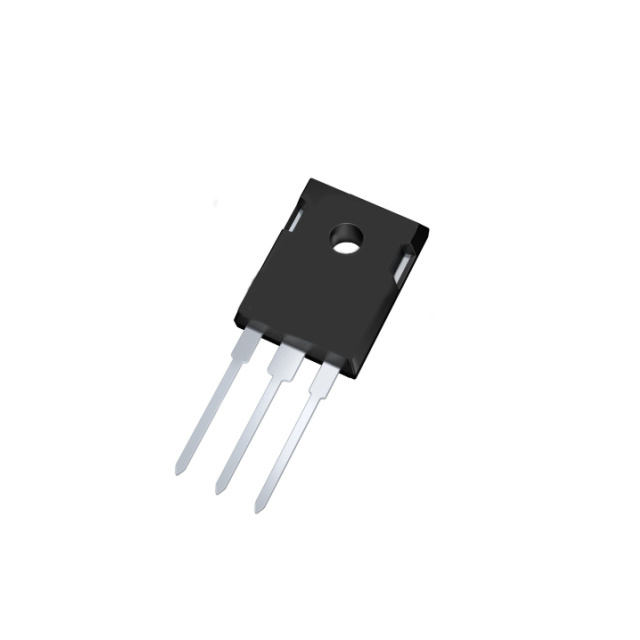

The IPAN60R180P7S offers a best-in-class price/performance ratio, simplicity, and the ability to meet the challenges of a wide range of applications.700V and 800V CoolMOS P7 power MOSFETs are developed for use in flyback, low-power SMPS applications, including adapters and chargers, lighting, audio SMPS, AUX, and industrial power supplies.600V CoolMOS P7 power MOSFETs are designed not only for low power applications but also for high power SMPS applications such as solar inverters, servers, telecom and EV charging stations.The P7 MOSFETs are thoroughly optimised for both hard and soft switching topologies.

Product Characteristics

Transistor type: N-channel transistor

Technology: MOSFET (Metal Oxide)

Drain-to-source voltage (Vdss): 600 В

Current at 25°C - Continuous Drain (Id): 18 A (Tc)

Supply Voltage (Max Rds on, Min Rds on): 10 Ω: 10 В

Vgs(th) at different Id (max): 4 V @ 280 µA

Gate charge (Qg) at different Vgs (max): 25 nK at 10 V

Vgs (max): ±20 V

Input capacitance (Ciss) at different Vds (max): 1081 pF @ 400 V

Power Dissipation (Max): 26 W (Tc): 26 W (Tc).

Operating Temperature: -40°C ~ 150°C (TJ)

Mounting type: Through-hole

Delivery incl.: PG-TO220-FP

Package/case: TO-220-3 full package

Applications

● PFC stages, hard-switching PWM stages and passive switching stages

● PCSilverbox, adapters, LCD&PDPTV, lighting, servers, telecom and UPS.
