Trade Name:TLE9250XLE
Data Manual:TLE9250XLE.pdf
Brand:INFINEON
Particular Year:23+

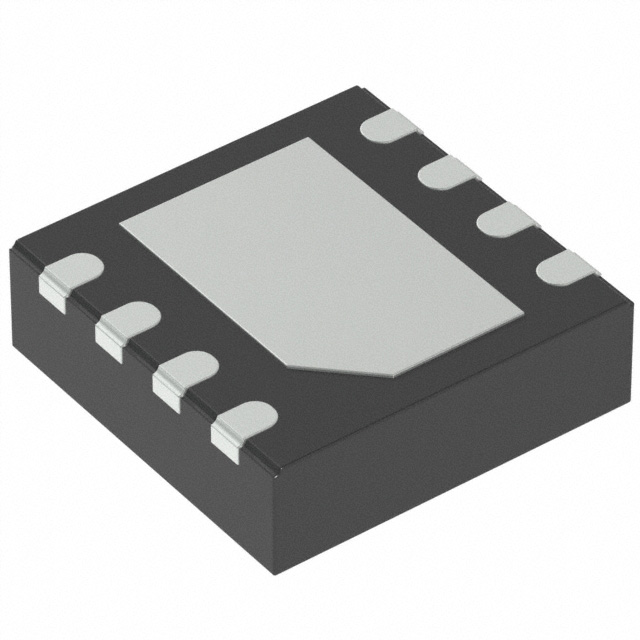

Package:PG-TSON-8
Delivery Date:New original
Stock: 1000pcs
The TLE9250XLE is a new generation of Infineon high-speed CAN transceivers for use in internal HS CAN networks for automotive and industrial applications. The transceiver meets the requirements of the ISO11898 standard (ISO11898-2 (2003) and the forthcoming new version of the physical layer specification ISO11898-2 (2016). In addition, it complies with SAE standards J1939 and J2284-4/5. The device supports bit rates of up to 5MBit/s, depending on the size of the network and consequent parasitic effects.
Specifications
Type: Transceiver
Protocol: CANbus
Number of drivers/receivers: 1/1
Duplex: -
Receiver lag: 100 mV
Data rate: 5Mbps
Voltage - Power supply: 4.5V ~ 5.5V
Operating temperature: -40°C ~ 150°C (TJ)
Mounting type: Surface mount, wets flanks
Package/housing: 8-TDFN bare pad
Supplier device package: PG-TSON-8-1
Basic product number: TLE9250
