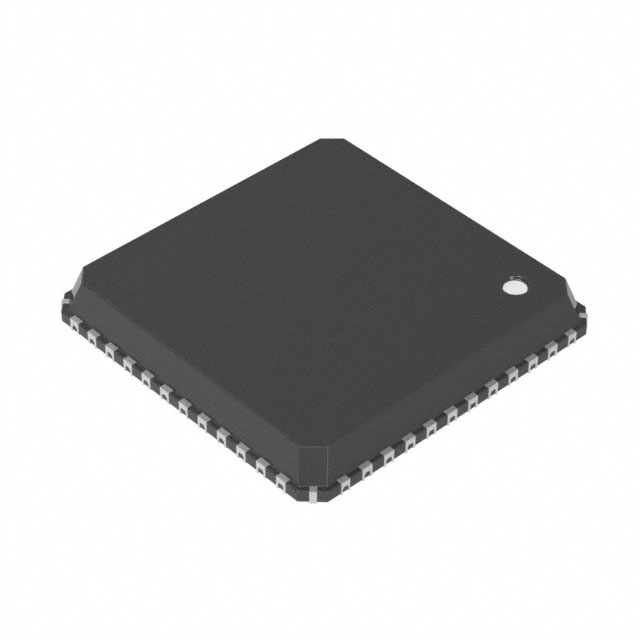

TLE92633BQXV33 is a monolithic integrated circuit in an exposed pad VQFN-48 (7 mm x 7 mm) power package with Lead Tip Inspection (LTI) feature to support Automatic Optical Inspection (AOI).

The device is designed for various CAN-LIN automotive applications as main supply for the microcontroller and as interface for a LIN and CAN bus network including the CAN Partial Networking feature.

Summary of Features

Very low quiescent current consumption in Stop- and Sleep Mode

Periodic Cyclic Wake in SBC Normal- and Stop Mode

Periodic Cyclic Sense in SBC Normal-, Stop- and Sleep Mode

Low-Drop Voltage Regulator 3.3V, 250mA

Low-Drop Voltage Regulator 5V, 100mA, protected features for off-board usage

Two LIN Transceivers LIN 2.2a, J2602 with configurable TXD timeout feature and LIN Flash Mode

Four High-Side Outputs 7Ω typ.

Dedicated supply pin for High-Side Outputs

Three universal High-Voltage Wake Inputs for voltage level monitoring

Alternate High-Voltage Measurement Function, e.g. for battery voltage sensing

Configurable wake-up sources

Reset Output

Configurable timeout and window watchdog

Up to three Fail Outputs (depending on configuration)

Overtemperature and short circuit protection feature

Wide supply input voltage and temperature range
