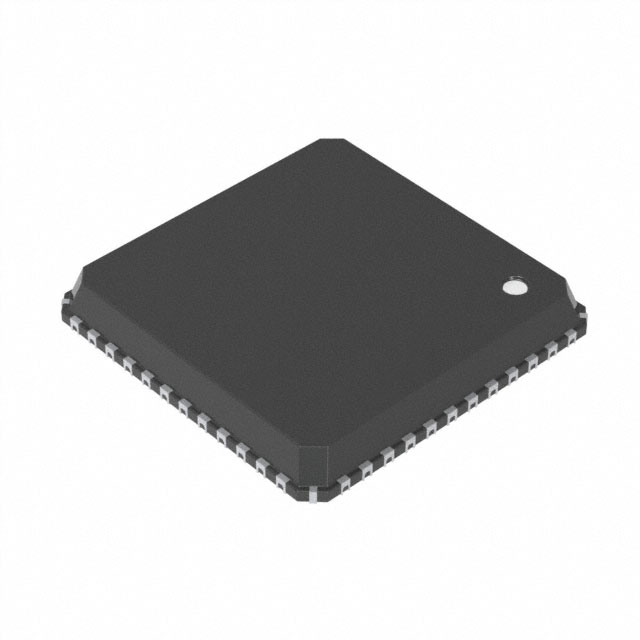

TLE9263BQXV33 is a monolithic integrated circuit System Basis Chips in an exposed pad VQFN-48 (7mm x 7mm) power package with LTI feature to support AOI.

The device is designed for various CAN-LIN automotive applications as main supply for the microcontroller and as interface for a LIN and CAN bus network. It offers low-power modes in order to minimize current consumption on applications that are connected permanently to the battery.

Summary of Features

Very low quiescent current consumption in Stop- and Sleep Mode

Periodic Cyclic Wake in SBC Normal- and Stop Mode

Periodic Cyclic Sense in SBC Normal-, Stop- and Sleep Mode

Low-Drop Voltage Regulator 3.3V, 250mA

Low-Drop Voltage Regulator 5V, 100mA, protected features for off-board usage

2 LIN transceivers supporting LIN 2.2/ISO 17987-4/SAE J2602

4 high-side outputs 7 Ω typ., 2 HV GPIOs, 3 HV wake inputs

Integrated fail-safe and supervision functions, e.g. fail-safe, watchdog, interrupt- and reset outputs

16-bit SPI for configuration and diagnostics

Dedicated supply pin for High-Side Outputs

Configurable timeout and window watchdog

Up to three Fail Outputs (depending on configuration)

Overtemperature and short circuit protection feature

Wide supply input voltage and temperature range
