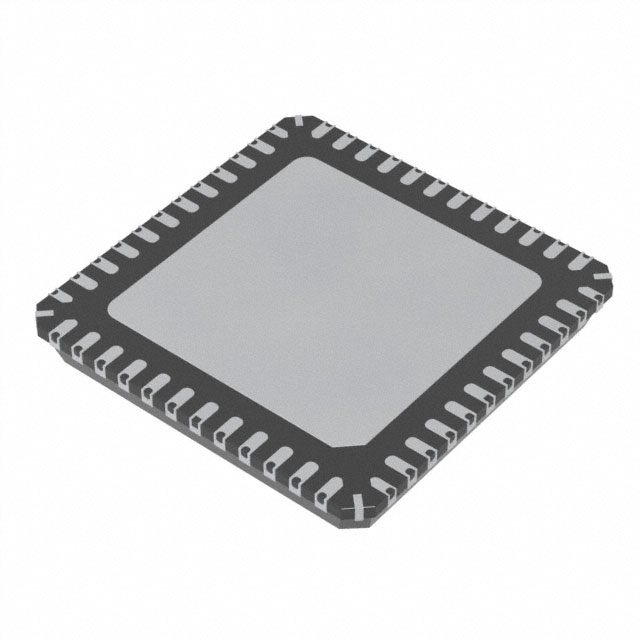

TLE9262BQX is a monolithic integrated circuit in an exposed pad VQFN-48 (7mm x 7mm) power package with LTI feature to support AOI.

Product Features

Two integrated Low-Drop Voltage Regulators: Main regulator with 5 V up to 250 mA (3.3 V variant available) and auxiliary regulator (5 V up to 100 mA) with off-board usage protection

Voltage regulator (5 V or 3.3 V selectable) with external PNP transistor configurable for off-board usage or for load sharing

1 high-speed CAN transceiver supporting FD communication up to 5 Mbit/s according to ISO 11898-2:2016 & SAE J2284 (Partial Networking option available)

LIN transceiver supporting LIN 2.2/ISO 17987-4/SAE J2602

4 high-side outputs 7 Ω typ., 2 HV GPIOs, 3 HV wake inputs

Integrated fail-safe and supervision functions, e.g. fail-safe, watchdog, interrupt- and reset outputs

16-bit SPI for configuration and diagnostics

Potential Applications

Body Control Modules (BMC), Passive keyless entry and start modules, Gateway applications

Heating, ventilation and air conditioning (HVAC)

Seat, roof, tailgate, trailer, door and other closure modules

Light control modules

Gear shifters and selectors
