The IKFW50N60ET offers flexibility in design, high output power, excellent cooling and reliability, and galvanic isolation.TRENCHSTOP Advanced Isolation offers 0.2% higher efficiency, 10% lower cooling temperature, and improved reliability. Both versions are optimised for performance and are available as replacements for FullPAK packages and standard and high performance isolation films. Applications targeted by the new packages include power factor correction (PFC) for air conditioners, uninterruptible power supplies (UPS) and power converters for drives.

Product Attributes

IGBT Type: Trench Field Cutoff

Voltage - Collector Breakdown (max): 600 V

Current - Collector (Ic) (max): 73 A

Current - Collector pulse (Icm): 150 A

Vce(on) at varying Vge, Ic (max): 2V @ 15V, 50A

Power - Max: 164 W

Switching Energy: 1.5mJ (on), 1.42mJ (off)

Input Type: Standard

Gate Charge: 290 nC

Td (on/off) value at 25°C: 28ns/305ns

Test Conditions: 400V, 50A, 7 Ohm, 15V

Reverse Recovery Time (trr): 91 ns

Operating Temperature: -40°C ~ 175°C (TJ)

Mounting Type: Through Hole

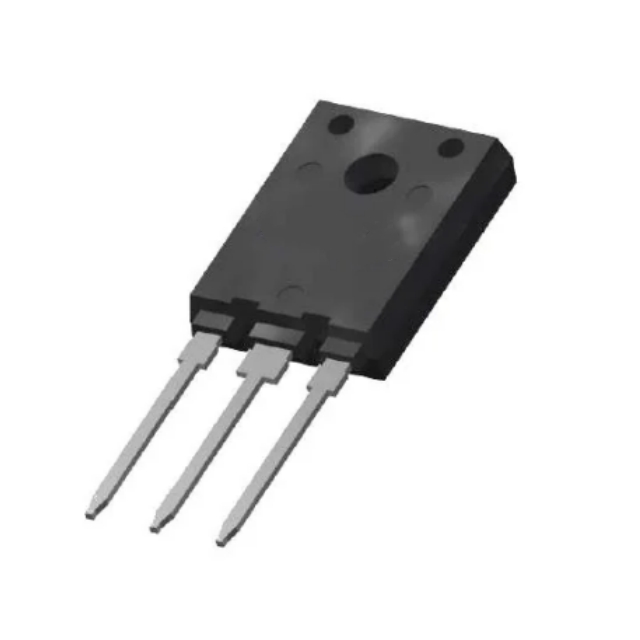

Package/Housing: TO-247-3

Supplier Device Package: PG-TO247-3-AI

Applications

● General Purpose Drives (GPD)

● Servo drives

● Industrial UPS

● Air conditioning

● Welding

● Solar array inverters
