TLF12501 integrated power-stage contains a low quiescent current synchronous buck gate-driver IC which is co-packed with control and synchronous MOSFETs.

Features

Integrated driver, control MOSFET Q1 and synchronous MOSFET Q2

On-chip MOSFET Current sensing and reporting at 5uA/A.

Input voltage (VIN) range of 4.25 V to 16 V

VCC and VDRV supply of 4.25 V to 5.5 V

Output voltage range from 0.225 V up to 5.5 V at VIN = 12 V

Output current capability of 60 A

Operation up to 2 MHz

VDRV under-voltage lockout (UVLO)

Bootstrap under-voltage protection

8mV / °C temperature analog output

Over-temperature protection and thermal shutdown

Cycle-by-cycle over current Protection (OCP) and flag

Control MOSFET short (HSS) detection and flag

Auto-replenishment on bootstrap capacitor

Compatible with 3.3 V tri-state PWM Input

Auto SLEEP mode after 20 µs of PWM Tri-state (1.6 mA typ)

DEEP SLEEP mode for power saving via EN= low (32 µA typ)

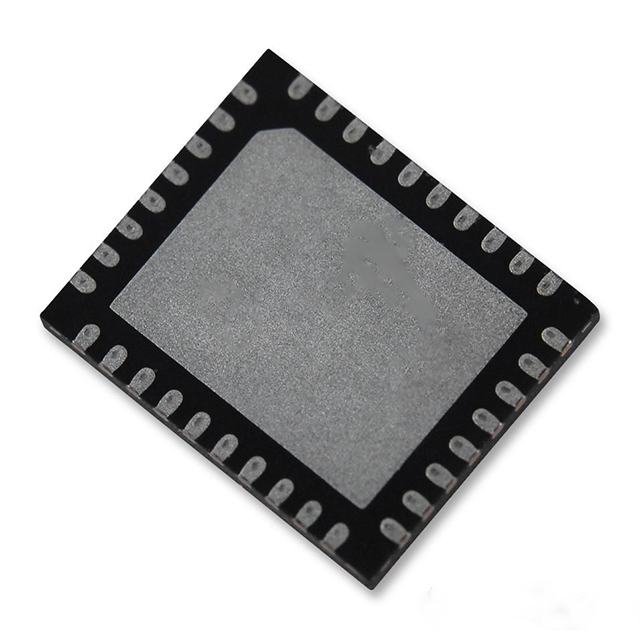

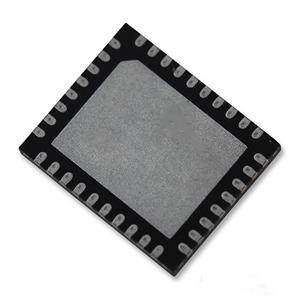

Small 5 mm x 6 mm x 0.9 mm PQFN package

Lead free RoHS compliant package

Compliant to automotive AEC-Q100 Rev H Grade 1 requirements
