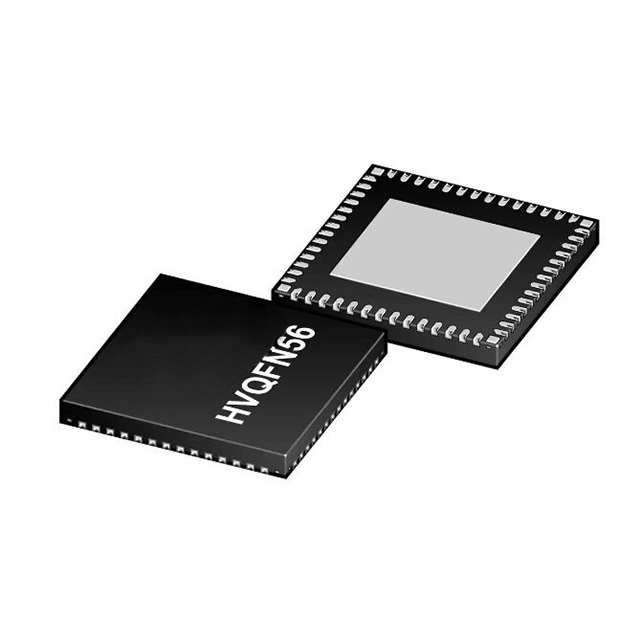

MVR5510AMBALES is an automotive multi-output power management IC that focuses on Gateway, In-Vehicle Networks, Domain controllers, Telematics and V2X Communications. The device includes multiple high-efficiency switch modes and linear voltage regulators. It offers external frequency synchronization on inputs and outputs for optimized system EMC performance.

Features and Benefits

60 VDC maximum input voltage

VPRE synchronous buck controller with external MOSFETs; Configurable output voltage, switching frequency, and current capability up to 10 A

Low-voltage integrated synchronous BUCK3 converter; Configurable output voltage and current capability up to 3.6 A peak

3x linear voltage regulators (LDOx) for MCU IOs, DDR and ADC supplies; Configurable output voltage and current capability up to 400 mA

High-voltage linear regulator (HVLDO) with current capability up to 10mA in LDO mode and 100 mA in Switch Mode

Low-power standby mode with very low quiescent current (35 μA with VPRE and HVLDO ON)

2x input pins for wake-up detection and battery voltage sense

Device control via I2C interface with CRC (up to 3.4 MHz)

Dual device operation possible via dedicated synchronization pin

Applications

Gateway

In-Vehicle Networks

Domain controllers

Telematics

V2X Communications
