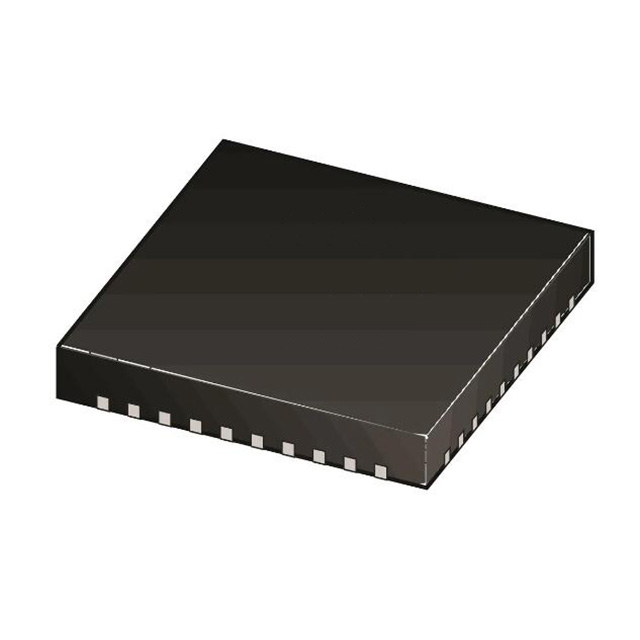

MPF5032BMMA0ES is a power management integrated circuit (PMIC) designed for S32Z2/E2 processors. Its input voltage of up to 5.25 V maximum makes it ideal to work in conjunction with NXP front system supply families (FS86, FS6x) or any other front supply in the automotive drive train market.

Features and Benefits

Voltage Range

• 5.25 V DC maximum operating voltage

• Support operating voltage range down to 3.3 V

• Low power OFF mode with low sleep current (15 µA typical)

System support

• 1x input pin for power-ON detection, 1.8 V, 3.3 V, and 5.0 V compatible

• Analog multiplexer with full system voltages and temperature monitoring

• Enhanced leader / follower power-up sequencing management through XFAILB pin

• 10 ms optional RSTB release delay during power-up for certain MCU compliance

• Device control via 32 bits I2C interface with 8-bit CRC

Applications

EV propulsion and power train domain controller

Chassis-integrated systems

S32Z2/E2 companion chip
