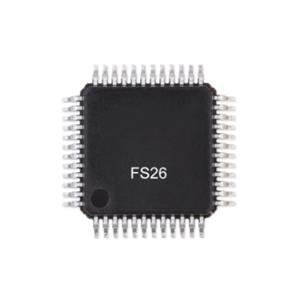

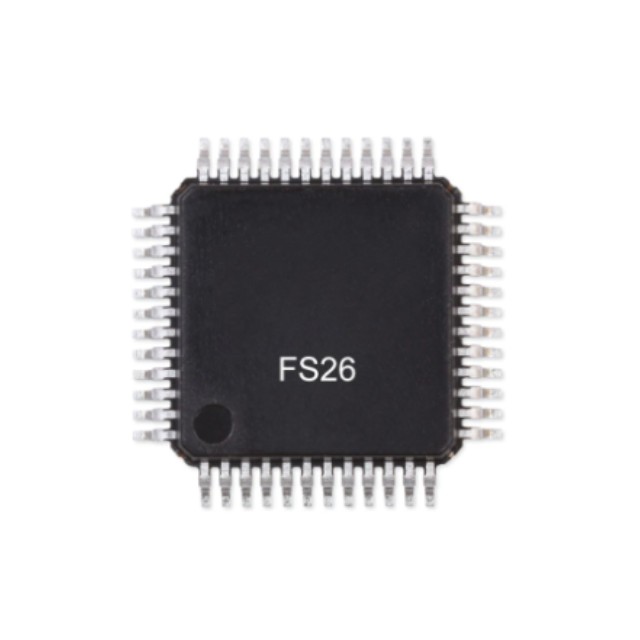

The MFS2600AMDA0AD automotive safety system-on-chip (SBC) devices offer multiple power supply options to support entry and mid-range safety microcontrollers such as the S32K3 family.The MFS2600AMDA0AD devices also support other microcontrollers targeting automotive electrification such as powertrain, chassis, safety, and low-end gateway applications.

The device features multiple switching regulators as well as LDO regulators to power microcontrollers, sensors, peripheral ICs, and communication interfaces.The FS26 provides a high-precision voltage reference for the system and a reference voltage for 2 independent voltage tracking regulators. In addition, various functions are available for system control and diagnostics, such as analogue multiplexers, GPIOS and selectable I/O wake-up events, long duration timers or SPI communications.

The MFS2600AMDA0AD is compliant with ISO 26262 standards covering ASIL B and ASIL D safety integrity levels. With multiple fail-safe outputs, it becomes a complete part of a safety-oriented system partition with the latest on-demand potential fault monitoring.

Key Features

Power Management

Maximum DC input voltage of 40V

Strict start-up operation with the aid of its BOOST controller (3.2V battery)

Low power shutdown mode with very low sleep current (typical: 30uA)

Low-power standby mode with VPRE activation LDO1 or LDO2 selectably activated via OTP configuration (typical: 35uA)

Multiple switching regulators as well as LDO regulators to power microcontrollers, sensors, peripheral ICs and communication interfaces.

System Solutions

Systems that save space and reduce complexity: LDT, AMUX, Dual Tracker, Vref

Long Duration Timer (LDT) configurable for system shutdown/wakeup control

Optional wake-up source: WAKE/GPIO pin, LDT or SPI activity

Functional Safety

Scalable product portfolio covering automotive safety integrity levels ASIL B to ASIL D

Enable potential fault monitoring during system operation: ABIST on demand

Stand-alone monitoring circuitry

Dedicated interface for microcontroller monitoring

Simple watchdog and challenger watchdog functions

Safe outputs with potential fault detection mechanisms (RSTB, FS0B, FS1B)

Configuration and support

LQFP48 pins with exposed pads for optimised thermal management

Permanent device customisation via one-time programming (OTP) fuse memory

Temporary OTP emulation mode for system development and evaluation

Available with S32K3 + FS26 hardware and software

Product Applications

Automotive electronics

Active Suspension

Transmissions and Gearboxes

Heating, ventilation and air conditioning (HVAC)

Automotive Advanced Exterior Lighting

Automotive Zone Controllers

Hybrid Electric Vehicle (HEV) Applications

Electric Power Steering (EPS)

Electric Vehicle (EV) Traction Inverter

Battery Management Systems (BMS)

Electric Pumps
