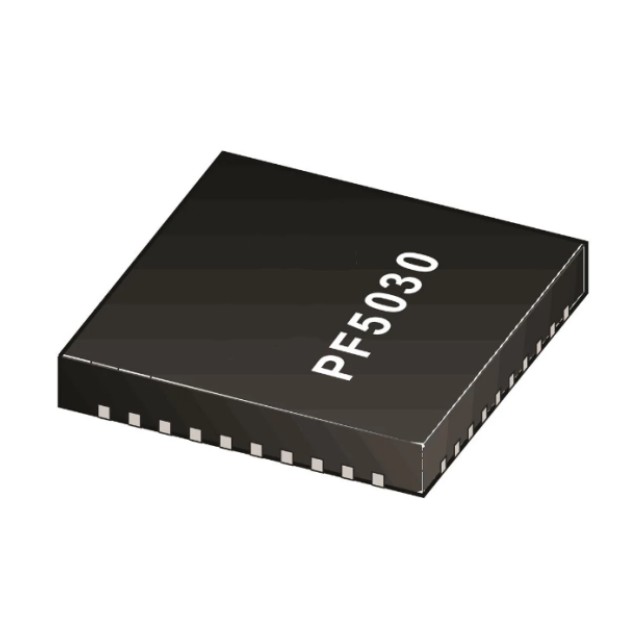

The MPF5030BMBA0ES is a power management integrated circuit (PMIC) designed for the S32Z2/E2 processor. With an input voltage of up to 5.25 V, it is ideally suited for use with NXP's family of front-end system power supplies (FS86, FS6x) or any other front-end power supply in the automotive drivetrain market.

Built-in one-time programmable (OTP) memory stores critical start-up configurations, greatly reducing the number of external components typically used to set output voltages and external regulator sequences. Regulator parameters can be adjusted via I2C after startup, providing flexibility for different system states.

Key Features

Three high-efficiency buck converters - supporting biphase and DVS functions

Two linear regulators with load switching option

Watchdog timer/monitor

Monitoring circuitry up to ASIL B/D safety level

One-time programmable (OTP) device configuration

1.0MHz I2C communication interface

Automotive Grade 1

40-pin 6x6 QFN package

System Features

OTP (one-time programming) memory for flexible device configuration

Spread spectrum

Fast PMIC startup

Advanced state machine with seamless processor interface

Fast mode + I2C interface support (up to 1.0MHz)

PGOOD monitor

Programmable soft-start sequence and shutdown sequence

Programmable regulator configuration

20-channel analogue multiplexer for intelligent system monitoring/diagnostics

Monitoring circuitry to ASIL B/D safety level

Stand-alone circuits with ASIL B/D safety ratings

Stand-alone voltage monitoring with programmable fault protection

Advanced thermal monitoring and protection

External watchdog monitoring and programmable internal watchdog counting

I2C CRC and write-protection mechanisms

Analogue and logic built-in self-test (ABIST/LBIST)

Applications

Electric vehicle propulsion and powertrain domain controllers

Chassis integration systems

S32Z2/E2 companion chip
