The INA190A1QDDFRQ1 is an automotive, low power, voltage output, current shunt monitor (also known as a current sense amplifier). The device is typically used in monitoring systems directly connected to automotive 12 V batteries. The voltage drop across the shunt can be sensed with a common-mode voltage range that detects the voltage drop across the shunt over a common-mode voltage range of -0.2 V to +40 V, independent of the supply voltage. In addition, the input pin has an absolute maximum voltage of 42 V. The device's low input bias current allows the use of large current-sense resistors.

Product Properties

Amplifier Type: Current Sense

Number of circuits: 1

Output Type: Full Swing

Slew rate: 0.3V/µs

-3db Bandwidth: 45 kHz

Current - Input bias: 500 pA

Voltage - Input Compensation: 3 µV

Current - Supply: 48µA

Voltage - Span (min): 1.7 V

Voltage - Span (Max): 5.5 V

Operating Temperature: -40°C ~ 125°C (TA)

Mounting Type: Surface Mount

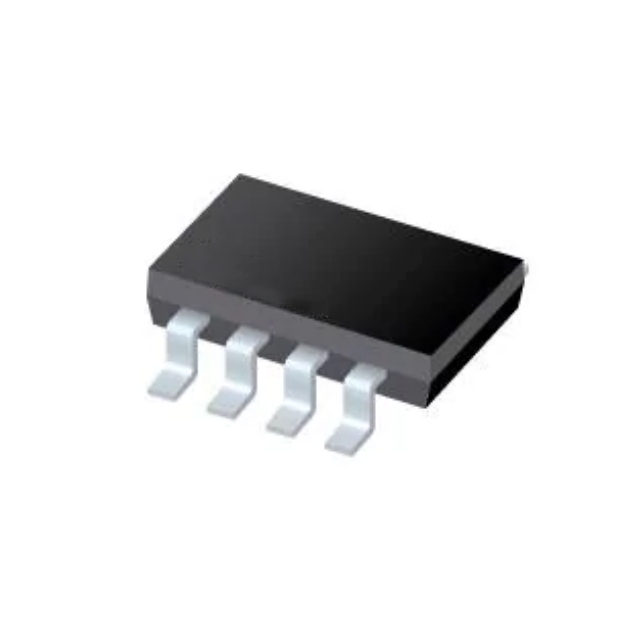

Package/Shell: SOT-23-8

Supplier Device Package: TSOT-23-8

APPLICATIONS

● Body Control Module (BCM)

● Telematics control unit

● Emergency Call (eCall)

● Battery Management System (BMS)

● Vehicle mainframe
