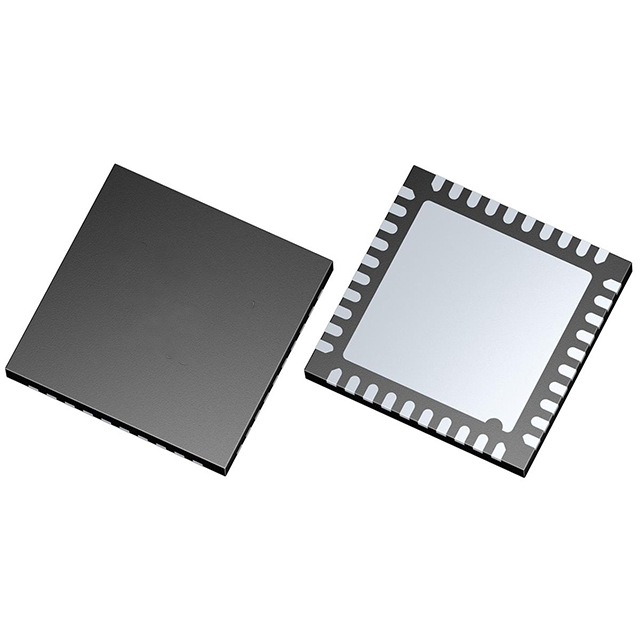

CYPD717140LQXQ is a highly integrated single-port USB Type-C Power delivery (PD) solution with an integrated buck-boost controller. It complies to the latest USB Type-C and PD specifications, and is targeted for single-port consumer charging applications.

Feature

Supports one USBPD port

Supports latest USBPD 3.1 including programmable power supply (PPS) mode

Extended data messaging

Configurable resistors Rp and Rd

VBUS provider NFET gate driver

Integrated 100-mW VCONN power supply and control

150 to 600 kHz switching frequency

4.5 to 24 V input, 40 V tolerant

3.3 to 21.5 V output

20-mV voltage and 50-mA current steps for PPS

Supports selectable pulse skipping mode (PSM) and forced continuous current/conduction mode (FCCM)

Supports soft start

Programmable spread spectrum frequency modulation for low EMI

On-chip VBUS overvoltage protection (OVP), overcurrent protection (OCP), undervoltage protection (UVP)

VBUS to CC short protection

Under-voltage lockout (UVLO)

Supports over-temperature protection through integrated ADC circuit and internal temperature sensor

Supports connector and board temperature measurement using external thermistors

Applications

USB-C multiport chargers and adapters

USB-C docking downstream facing ports

Wireless/PD chargers

Cigarette lighter adapters (CLAs)

Single-port consumer charging applications

Power source charger
