The TMUX7349FPWR is a modern complementary metal-oxide-semiconductor (CMOS) analog multiplexer available in a 4:1 (differential) configuration. The device operates from dual (±5V to ±22V), single (8 V to 44 V), or asymmetrical supplies (e.g., V DD = 12V, V SS = -5V.) The TMUX7349FPWR device provides overvoltage protection in both power-on and power-off conditions for applications where precise control of power supply timing is not possible.

Features

- Wide supply voltage range:

- Dual supply: ±5 V to ±22 V

- Single supply: 8 V to 44 V

- Integrated fault protection:

- Overvoltage protection (from source to supply or to drain): ±85 V

- Overvoltage protection: ±60 V

- Fail-safe: ±60 V Overvoltage protection (from source to supply or to drain): ±85 V

- Adjustable overvoltage trigger threshold

- VFP: 3 V to VDD, VFN: 0 V to VSS

- Interrupt flag to indicate comprehensive and specific fault channel information

- Fault-free channels continue to operate at low leakage currents

- Outputs are clamped to the faulty supply during overvoltage conditions

- Latch-up suppression by device construction

- Supported logic levels: 1.8V

- Fail-safe logic: up to 44V (supply independent)

- Break-before-close switching

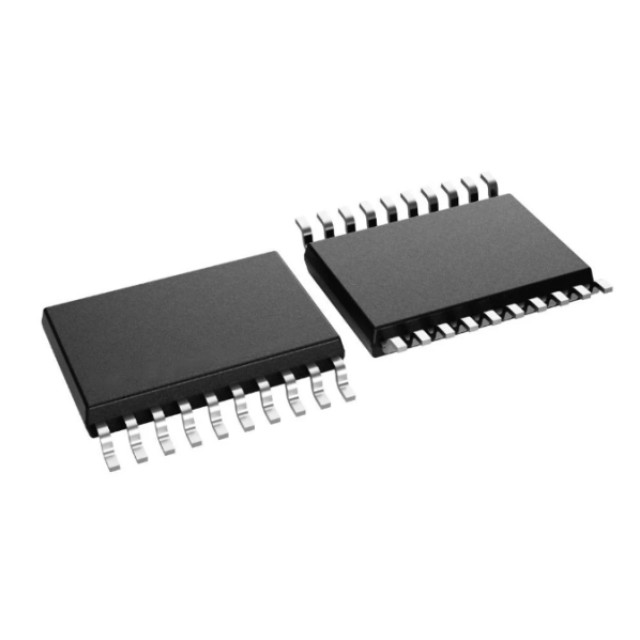

- Industry-standard TSSOP package and smaller WQFN package

Applications

- Factory automation and control

- Programmable logic controllers (PLCs)

- Analog input modules

- Semiconductor test equipment

- Battery test equipment

- Servo Drive Control Modules

- Data Acquisition Systems (DAQ)
