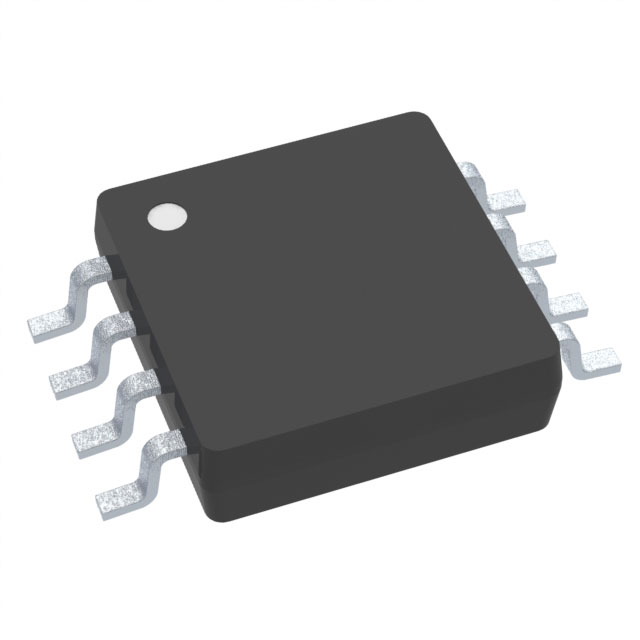

The OPA2388QDGKRQ1 is an automatic low-noise, fast, stable, zero-drift, high-precision operational amplifier that enables rail-to-rail input and output operation. Excellent AC performance combined with an offset voltage of only 0.25µV and a temperature drift of 0.005µV/°C make this device ideal for driving high-precision, high-resolution analogue-to-digital converters (ADCs). Zero-crossing technology further reduces the variation of intermodulation voltages in the common mode range. The combination of low drift and ultra-low 1/f noise allows the OPAx388-Q1 to monitor and detect fault conditions without compromising signal integrity.

Product Attributes

Amplifier Type: Zero Drift

Number of circuits: 2

Output Type: Full Swing

Slew rate: 5V/µs

Gain Bandwidth Product: 10 MHz

Current - Input Bias: 30 pA

Voltage - Input Compensation: 0.25 µV

Current - Supply: 1.9 mA (x2 channels)

Current - Output/Channel: 60 mA

Voltage - Span (min): 2.5 V

Voltage - Span (Max): 5.5 V

Operating Temperature: -40°C ~ 125°C (TA)

Mounting Type: Surface Mount

Package/Shell: 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)

Supplier Device Package: 8-VSSOP

Applications

● Hybrid/electric vehicle inverters and motor control

● Battery Management Systems (BMS)

● DC/DC converters

● On-board (OBC) and wireless chargers
