MFS5600AMMA0ES is Automotive buck regulator and controller with voltage monitors and watchdog timer. The FS5600 integrates a battery connected DC-DC controller with external FETs and a battery connected DC-DC converter with internal FETs. It also offers functional safety features such as independent voltage monitors, windowed watchdog timer, I/O monitoring via ERRMON and FCCU, and built-in self-test.

Features and Benefits

• 2 x High-Voltage Buck Converters:

– Buck Controller - External FETs - 900 mA gate drive - up to 15 A load capability

– Buck Regulator - Internal FETs - 3 A+ load capability

– ±2 % Output Accuracy

– 250 kHz to 3 MHz switching frequency

• High-efficiency PFM mode

• Safety Features:

– Available in Enhanced ASIL B, ASIL B, and QM variations

– 2 internal and up to 4 high-accuracy external voltage monitors

– Windowed Watchdog Timer

– ERRMON and FCCU monitoring

– 2 x PGOOD and 1 x FS0B outputs

– ABIST and LBIST for latest failure check

• GPIOs for seamless operation with PF PMICs

• Rated from –40 °C to 150 °C TJ

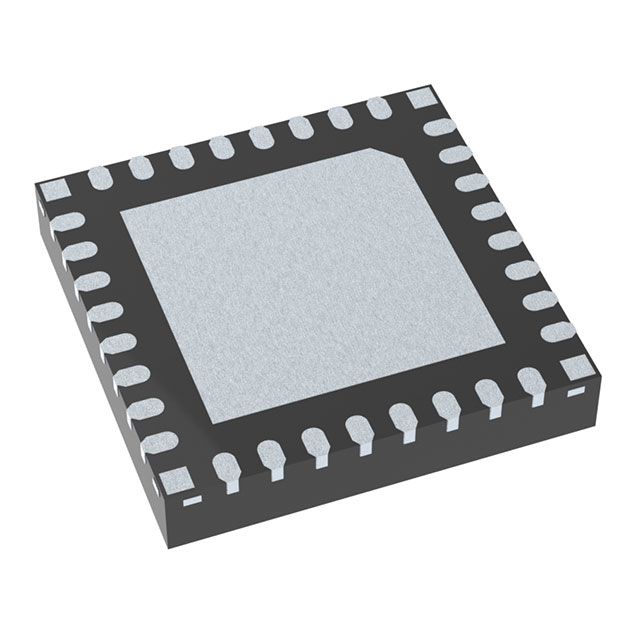

• 32-Ld 5 mm x 5 mm QFN

Applications

QM to ASIL D automotive applications such as:

Infotainment / Cluster / Driver Awareness

Telematics

V2X

Radar

Vision

ADAS

Sensor fusion
