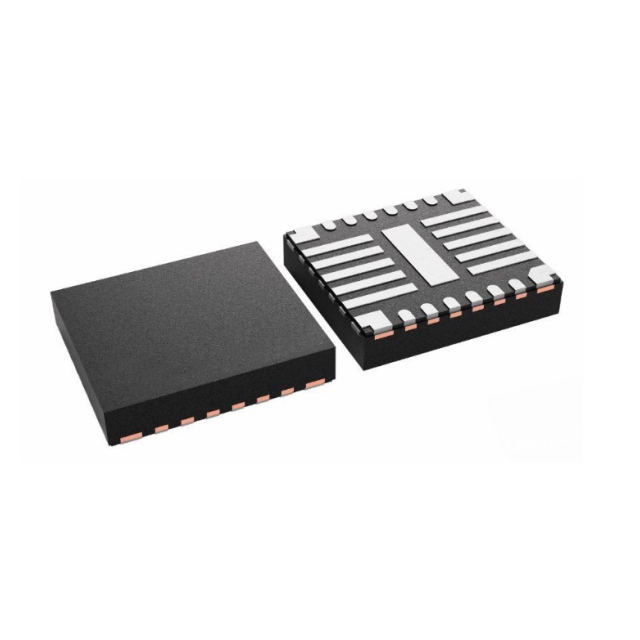

The LP875651RNFRQ1 device is designed to meet the power management requirements of the latest processors and platforms in a variety of automotive power applications. The device consists of four step-down DC/DC converter cores that can be configured with one four-phase output, one three-phase and one single-phase output, two two-phase outputs, one two-phase and two single-phase outputs, or four single-phase outputs. The device is controlled by an I2C compatible serial interface and enable signals.

Product Attributes

Function: Buck

Output Configuration: Positive

Topology: Buck

Output Type: Adjustable

Number of Outputs: 2

Voltage - Input (Min): 2.8V

Voltage - Input (Max): 5.5V

Voltage - Output (Min/Fixed): 0.6V

Voltage - Output (Max): 3.36V

Current - Output: 8A, 8A

Frequency - Switch: 2MHz

Synchronous Rectifier: Yes

Operating Temperature: -40°C ~ 125°C (TA)

Mounting Type: Surface Mount, Wettable Sides

Package/Housing: 26-PowerVFQFN

Supplier Device Package: 26-VQFN-HR (4.5x4)

Applications

● Automotive infotainment, dashboard, radar and camera power applications
