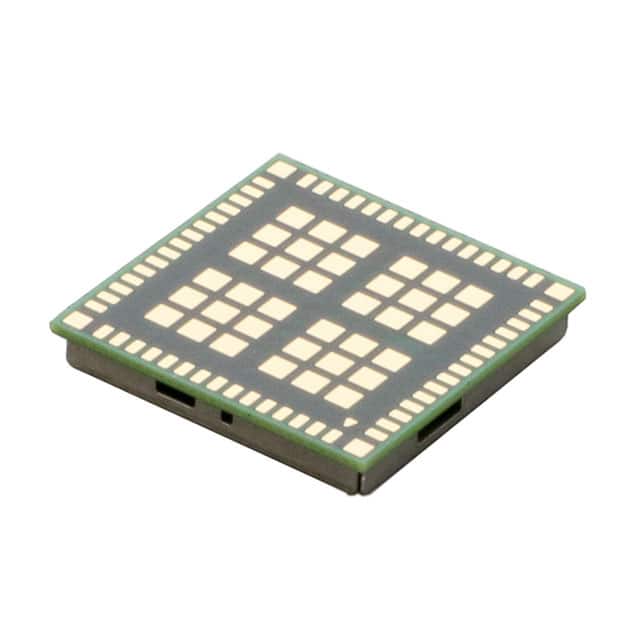

The WL1807MODGIMOCR is a Wi-Fi-enabled dual-band 2.4GHz and 5GHz module solution with two antennas that support industrial temperature levels. The device is FCC, IC, ETSI/CE and TELEC certified for use with access points (aps) (DFS-enabled) and clients. TI provides drivers for advanced operating systems such as Linux and Android™.

specification

Type: TxRx + MCU

Rf series/standard: Bluetooth, WiFi

Protocol: 802.11a/b/g/n, Bluetooth 4.1

Modulation: -

Frequency: 2.4GHz, 5GHz

Data rate (maximum) : 54Mbps

Power-output: 18.5dBm

Sensitivity: -95dBm

Storage capacity: -

Serial interface: UART

GPIO: 7

Voltage-supply: 2.9V ~ 4.8V

Current - Reception: 85mA

Current-transmission: 510mA

Operating temperature: -40°C to 85°C

Mounting type: surface mount type

Package/case: 100-SMD module

Supplier device package: 100-QFM

Basic product number: WL1807

Application

Internet of things

multimedia

Household electronic products

Household appliances and white goods

Industrial and home automation

Intelligent gateway and metering

Video conference

Cameras and security
