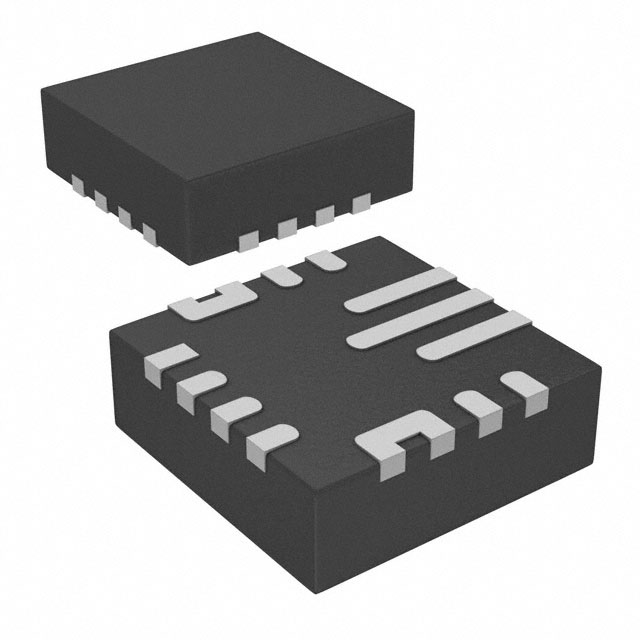

The TPS630701RNMR is a high efficiency, low quiescent current buck-boost converter for applications where the input voltage is higher or lower than the output voltage. The output current can be as high as 2 A in both boost and buck modes.The buck-boost converter is based on a fixed-frequency, pulse-width modulated (PWM) controller with synchronous rectification for maximum efficiency. At low load currents, the converter enters a power save mode to maintain high efficiency over a wide range of load currents. The converter can be disabled to minimise battery consumption. The load is disconnected from the battery during shutdown. The device is available in a 2.5 mm x 3 mm QFN package.

Product Attributes

Function: Boost/buck

Output Configuration: Positive

Topology: Buck-Boost

Output Type: Fixed

Number of Outputs: 1

Voltage - Input (Min): 2V

Voltage - Input (Max): 16V

Voltage - Output (Min/Fixed): 5V

Current - Output: 2A

Frequency - Switch: 2.4MHz

Synchronous Rectifier: Yes

Operating Temperature: -40°C ~ 125°C (TJ)

Mounting Type: Surface Mount

Package/Housing: 15-PowerVFQFN

Supplier Device Package: 15-VQFN-HR (3x2.5)

Applications

● Dual lithium-ion battery applications

● Industrial metering equipment

● DSCs and cameras

● Laptop computers

● Ultra-mobile PCs and mobile Internet devices

● Personal medical products
