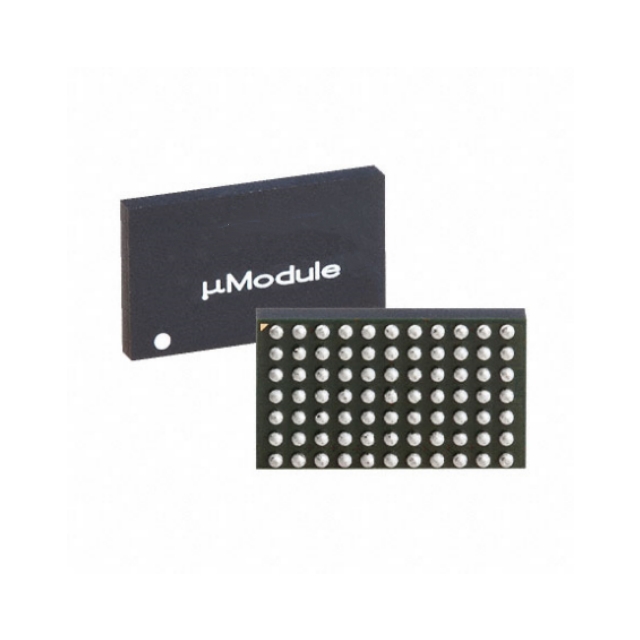

The LTM8049EY is a dual SEPIC/inverting µModule® DC/DC converter. Each of the two outputs can be easily configured as a SEPIC or inverting converter by simply grounding the corresponding output rail. Includes power devices, inductors, control circuits, and passive components. Input and output capacitors are required to complete the design, as well as small resistors to set the output voltage and switching frequency. Other components are available to control soft start and undervoltage lockout.

Product Attributes

Type: Non-Isolated PoL Module

Number of Outputs: 2

Voltage - Input (Min): 2.6V

Voltage - Input (Max): 20V

Voltage - Output 1: 2.5 ~ 24V

Voltage - Output 2: -2.5 ~ -24V

Current - Output (Max): 1A

Application: ITE (Commercial)

Characteristics: OTP, UVLO

Operating Temperature: -40°C ~ 125°C

Mounting Type: Surface Mount

Package / Case: 77-BBGA

Size / Dimensions: 0.59" L x 0.35" W x 0.10" H (15.0mm x 9.0mm x 2.4mm)

Supplier Device Package: 77-BGA (15x9)

APPLICATIONS

● Battery-powered regulators

● Local negative regulator

● Low noise amplifier power
