The LTM4668EY is a four-channel DC/DC step-down µModule regulator that delivers 1.2A DC current per output channel. The outputs can be paralleled by arrays to achieve up to 4.8A capability. The package includes switching controllers, power FETs, inductors, and ancillary components. the LTM4668EY operates over an input voltage range of 2.7V to 17V, and it supports an output voltage range of 0.6V to 1.8V. Only input and output body capacitors are required. The kit supports frequency synchronisation, polyphase operation, selectable burst mode operation, 100% duty cycle and low IQ operation. Its high switching frequency and current-mode architecture provide fast transient response to line and load changes without sacrificing stability.

Product Features

Quad output step-down µModule regulator providing 1.2A per output channel

Wide input voltage range: 2.7V to 17V

Output Voltage: 0.6V to 1.8V

1.2A DC, can be paralleled to provide output current per channel

Total output voltage regulation: ±1.5 per cent

100% duty cycle operation

Current mode control, fast transient response

External frequency synchronisation

Burst Mode® selectable

Good power indication

Over-voltage, over-current and over-temperature protection

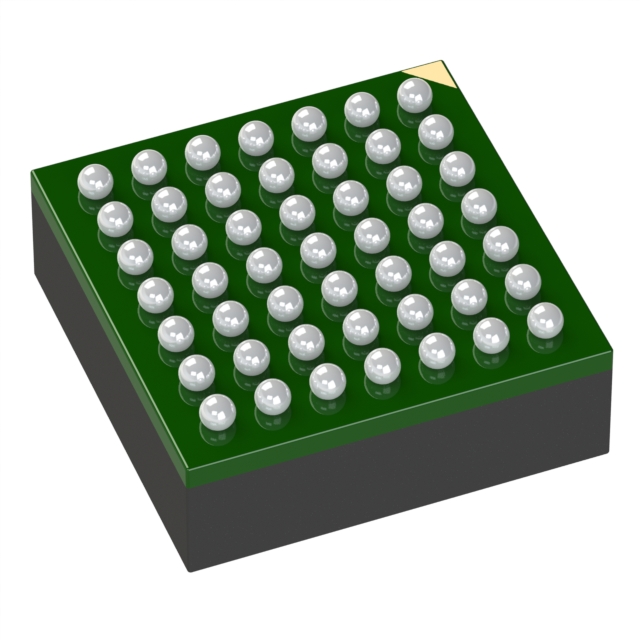

6.25mm × 6.25mm × 2.1mm BGA package

Pin-compatible with LTM4668A (0.6V to 5.5V output, 2.25MHz)

Product Applications

Telecom, networking and industrial equipment

Multi-rail point-of-load regulation

FPGA, DSP and ASIC applications
