The ADUM5028-3BRIZ is an isolated DC/DC converter with integrated isoPower®. The DC/DC converter utilizes ADI's iCoupler® technology to provide a regulated isolated power supply that is below the CISPR22 Class B limits for a 2-layer PCB with ferrite at full load.

The ADUM5028-3BRIZ eliminates the need to design and build isolated DC/DC converters in 300 mW applications. iCoupler chip-scale transformer technology is used for the magnetic components of the DC/DC converter. This provides a small footprint, isolated solution.

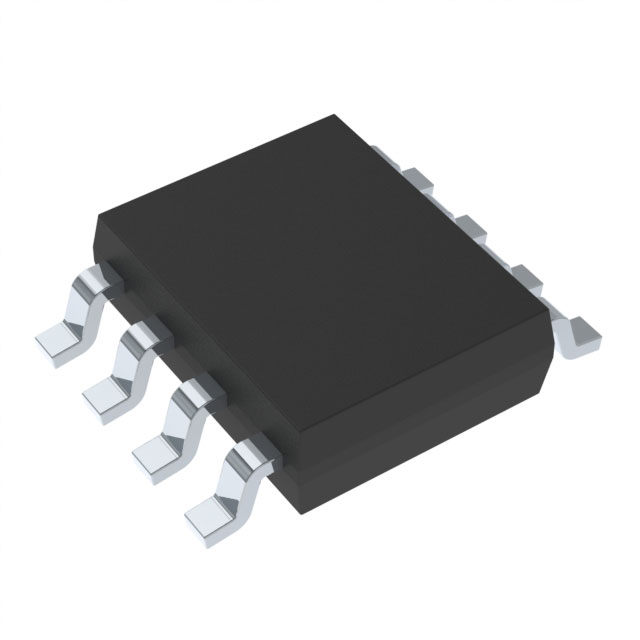

The ADUM5028-3BRIZ isolated DC/DC converter is available in a space-saving 8-pin wide-body SOIC package.

Features

Isolated DC/DC converter with integrated isoPower

Output current: 60 mA

Meets CISPR22 Class B radiation limits for 2-layer PCBs under full load conditions

8-pin SOIC_IC package with minimum creepage distance of 8.3 mm

Operating temperature up to: 125°C (max)

Safety and regulatory approvals

UL certification (pending)

3000 V rms for 1 minute per UL 1577

CSA Component Acceptance Notification 5A (pending)

VDE Certificate of Conformity (pending)

VDE V 0884-10

VIORM = 565 V peak

CQC Certificate of Conformity to GB4943.1-2011 (pending)

Applications

RS-485/RS-422/CAN transceiver power supplies

Power supply startup bias and gate drive

Isolated sensor interface
