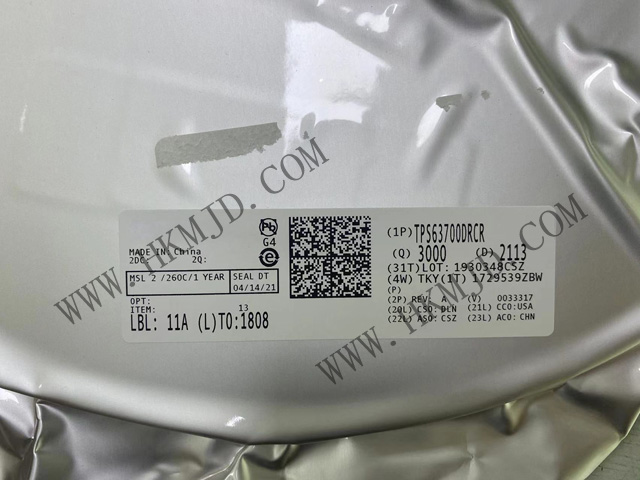

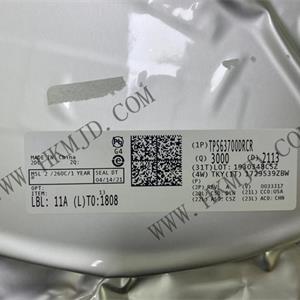

Commodity Model:TPS63700DRCR

Trade Name:TPS63700DRCR

Data Manual:TPS63700.pdf

Brand:TI

Particular Year:2113+

Package:SON10

Delivery Date:New and Original

Stock: 6000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
TI
Model
TPS63700DRCR
Package
SON10
Describe
Buck Boost Switching Regulator IC Negative Adjustable -2V 1 Output 360mA 10-VFDFN Exposed Pad

Product Description

The TPS63700 is an inverting DC-DC converter ating negative output voltages as low as –15 V and output currents as high as 360-mA, depending on the ratio of in- input voltage to output voltage. With a total efficiency of up to 84%, the device is ideal for portable battery powered devices. The input voltage range of 2.7V to 5.5V allows the TPS63700 to be powered directly from a Li-Ion battery, powered by 3 NiMH/NiCd batteries, from a 3.3V or 5V rail.

The TPS63700 is available in a small 3mm x 3mm SON-10 package. Further - more, typically a high switching frequency of 1.4 MHz allows the use of small external components. This, and small package make low power small 3mm x 3mm SON-10 package (DRC) supply solutions possible.


product properties

Category Integrated Circuit (IC) PMIC - Voltage Regulators - DC DC Switching Regulators

Manufacturer Texas Instruments

series -

Packaging Tape and Reel (TR) Cut Tape (CT) Digi-Reel® Custom Tape and Reel

product status on sale

Function Boost / Buck

output configuration negative

Topology Buck Boost

output type adjustable

Number of outputs 1

Voltage - Input (min) 2.7V

Voltage - Input (Max) 5.5V

Voltage - Output (min/fixed) -2V

Voltage - Output (Max) -15V

Current - Output 360mA

Frequency - Switching 1.38MHz

Synchronous rectifier none

Operating temperature -40°C ~ 85°C (TA)

Mounting Type Surface Mount

Package/Case 10-VFDFN Exposed Pad

Vendor Device Package 10-VSON (3x3)


Application

Universal Negative Voltage Power Supply

Small and Medium OLED Displays

PDAs, PDAs, Smartphones

Bias supply
