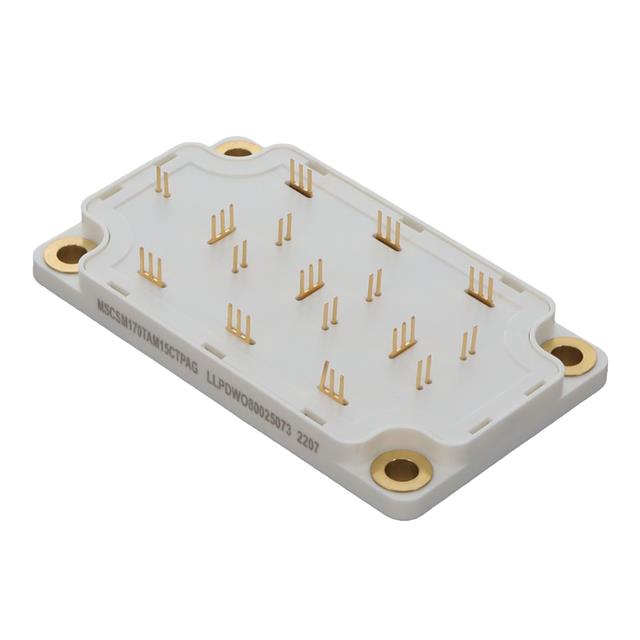

The MSCSM170TAM15CTPAG are SiC Schottky diodes with SiC power MOSFETs, low RDS (conduction), high temperature performance, zero reverse recovery and zero forward recovery, temperature independent switching behaviour, positive VF temperature coefficient, very low stray inductance, internal thermistor for temperature monitoring and an Aluminium Nitride (AlN) substrate for improved thermal performance. Devices are available with high power, high efficiency converters and inverters, excellent performance in high frequency operation, direct mounting to heat sinks (isolation packages), low thermal resistance of the enclosure, soldered terminals for power and signals for easy PCB mounting, small form factor, and RoHS compliance.

Product Attributes

Technology: Silicon Carbide (SiC)

Configuration: 6 N-Channel (Phase Leg)

Drain-Source Voltage (Vdss): 1700V (1.7kV)

Current at 25°C - Continuous Drain (Id): 179A (Tc)

On-resistance (max) at different Id, Vgs: 15 milliohms @ 90A, 20V

Vgs(th) at varying Id (max): 3.2V @ 7.5mA

Gate Charge (Qg) at Vgs (max): 534nC @ 20V

Input capacitance (Ciss) at varying Vds (max): 9900pF @ 1000V

Power - Max: 843W (Tc)

Operating Temperature: -40°C ~ 175°C (TJ)

Mounting Type: Chassis Mount

Package/Housing: Module

Applications

● Welding converters

● Switch-mode power supplies

● Uninterruptible power supplies

● Electric vehicle motors and traction drives
