The ADP5073ACPZ is a high-performance DC-DC inverting regulator for generating negative supply rails. 2.85 V to 15 V input voltage range supports a variety of applications. The integrated main switch generates an adjustable negative output voltage below the input voltage of 39 V. Operates at a pin-selected switching frequency of 1.2 MHz/2.4 MHz. Can be synchronised with an external oscillator from 1.0 MHz to 2.6 MHz to simplify noise filtering in sensitive applications.

Product Attributes

Function: Ratiometric, Boost/Buck

Output Configuration: Negative

Topology: Buck Boost

Output Type: Adjustable

Number of Outputs: 1

Voltage - Input (Min): 2.85V

Voltage - Input (Max): 15V

Voltage - Output (Min/Fixed): Vin-39V

Current - Output: 1.2A

Frequency - Switch: 1.2MHz, 2.4MHz

Synchronous Rectifier: None

Operating Temperature: -40°C ~ 125°C (TJ)

Mounting Type: Surface Mount

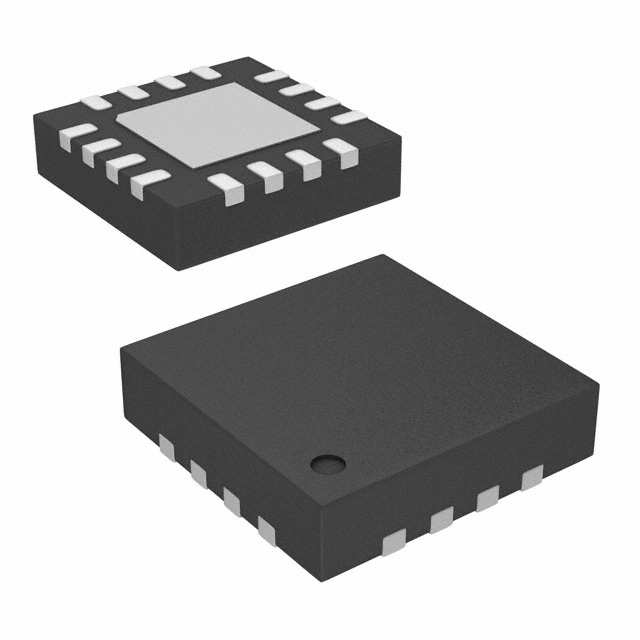

Package/Shell: 16-WFQFN Exposed Pad, CSP

Supplier Device Package: 16-LFCSP (3x3)

Applications

● Bipolar amplifiers, ADCs, digital-to-analog converters (DACs), and multiplexers

● High-speed converters

● Radio Frequency (RF) Power Amplifier (PA) Bias Optical Modules
