The CC1311R31T0RGZR device is a multi-protocol Sub-1GHz wireless microcontroller (MCU) that supports the following protocols: IEEE 802.15.4g, Smart Objects with IPv6 support (6LoWPAN), mioty, and proprietary systems including TI 15.4-Stack (Sub-1GHz). Based on the Arm® Cortex® M4 main processor, the CC1311R31T0RGZR is optimised for low-power wireless communications and advanced sensing in grid infrastructure, building automation, retail automation, personal electronics and medical applications. The device features a software-defined radio driven by the Arm® Cortex® M0 that supports multiple physical layer and RF standards. The device supports operation in the 143MHz to 176MHz, 287MHz to 351MHz, 359MHz to 527MHz, 861MHz to 1054MHz, and 1076MHz to 1315MHz bands. With a highly efficient built-in PA, the TX supports an output power of +14dBm at a current consumption of 24.9mA. In RX and in SimpleLink™ long-range mode at a data rate of 2.5kbps, the device has a sensitivity of -121dBm and a shielding performance of 88dB (±10MHz).

Product Properties

Type: TxRx + MCU

RF Family/Standard: Bluetooth

Protocol: Bluetooth 5.2, Thread, Wireless M-Bus, Zigbee

Modulation: 2FSK, 4FSK, 2GFSK, 4GFSK, DSSS, GFSK, MSK, OOK

Frequency: 143MHz ~ 176MHz, 287MHz ~ 351MHz, 359MHz ~ 439MHz, 431MHz ~ 527MHz, 861MHz ~ 1.054GHz, 1.076GHz ~ 1.315GHz

Data Rate (Max:) 1Mbps

Power - Output: 14dBm

Sensitivity: -121dBm

Storage Capacity: 352kB RAM, 40kB SRAM

Serial Interfaces: GPIO, I²C, I²S, SPI, UART

GPIO: 30

Voltage - Supply: 1.8V ~ 3.8V

Current - Receive: 5.4mA

Current - Transmit: 7.4mA ~ 24.9 mA

Operating Temperature: -40°C ~ 105°C (TA)

Mounting Type: Surface Mount

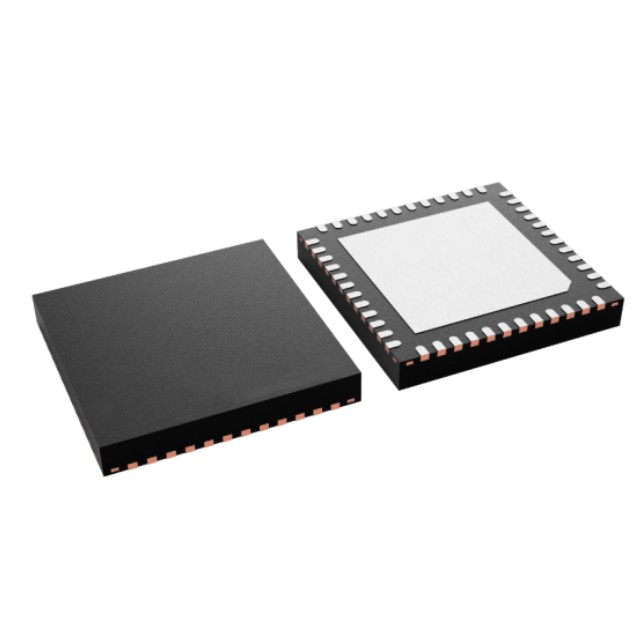

Package/Shell: 48-VFQFN Exposed Pad

Supplier Device Package: 48-VQFN (7x7)

Applications

- Grid Infrastructure

- Smart Metering - Electricity, Water, Gas and Heat Distribution Meters

- Grid Communications - wireless communications

- Electric Vehicle Charging Infrastructure - AC charging stations

- Other Alternative Energy - Energy Harvesting

- Building Automation

- Building Security Systems - motion detectors, door and window sensors, glass break detectors, panic buttons, electronic smart locks and IP webcams

- HVAC Systems - Thermostats, environmental sensors and HVAC controllers

- Fire Safety - smoke and heat detectors, gas detectors, and fire alarm control panels

- Retail Automation

- Retail automation and payment applications - electronic shelf labelling and portable POS terminals

- Personal Electronics

- RF remote control

- Smart speakers and smart displays

- Games, electronic toys and robotic toys

- Wearables (non-medical) and smart trackers

- Wireless Modules

- Wireless Third Party Modules

- Wireless Communication Modules
