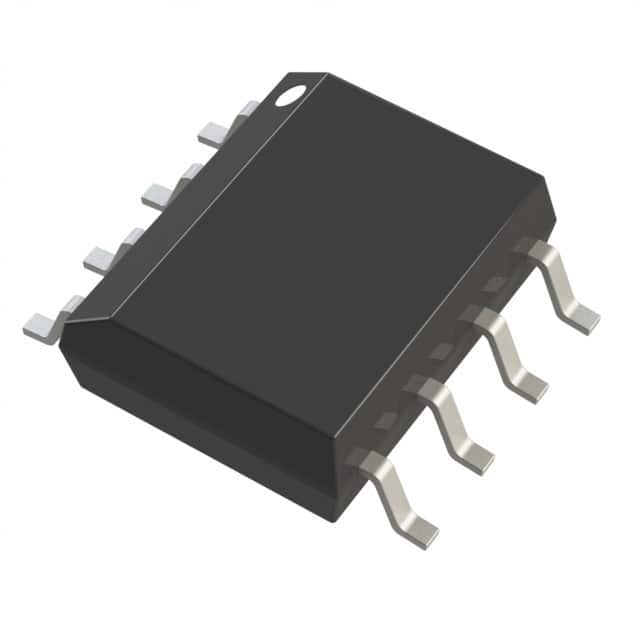

The ADA4510-2ARZ is a dual-channel, 40V, high-precision, low input bias current, low offset voltage, low offset voltage drift, low noise, rail-to-rail input and output operational amplifier that can be used at any point in the signal chain, including detection, conditioning, and output drive.

specification

Amplifier type: Standard

Circuit number: 2

Output type: Single-ended, rail-to-rail

Pressure swing rate: 20V/µs

Gain-bandwidth product: 10 MHz

-3db Bandwidth: 13.5 MHz

Current-input bias: 2.5pA

Voltage-input compensation: 5 µV

Current - Power supply: 1.5mA (x2 channel)

Current - Output/channel: 70 mA

Voltage - span (min) : 6 V

Voltage - span (Max.) : 40 V

Operating temperature: -40°C ~ 125°C

Mounting type: Surface mount type

Package/housing: 8-SOIC (0.154", 3.90mm wide)

Supplier device package: 8-SOIC

Application

Electronic test and measurement

Data acquisition system

Automatic test equipment

Medical instrument

Multiplexed input signal chain

Precision current measurement

Photodiode amplifier
