The LT4239ADE Hot Swap Controller safely inserts the board into or removes it from a powered backplane. By using an external N-channel regulator, the board supply voltage and inrush current rise at a controlled rate. The dual 12V gate drive is enabled to support high current loads by providing a two-stage startup that first charges the load capacitor and then enables a low on-resistance path to the load. The power supply outputs provide protection against short circuit faults through fast acting electronic circuit breakers.

Benefits and Features

Safe for insertion into energized backplanes

Wide operating voltage range: 4V to 20V

Dual gate driver for high current applications

Surge voltage resistant unprotected TVS

Monitors operation of VGS and VDS MOSFETs

Accurate 10mV±5% circuit breaker thresholds

Boost mode for load surges

Current Monitor Output

12 V gate driver for lower MOSFET RDS(ON)

Adjustable start-up and overcurrent fault delays

Output undervoltage protection

Fault and power good outputs

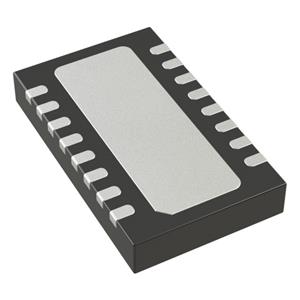

16-pin 4mm × 3mm DFN package

Applications

Electronic circuit breakers

Enterprise servers and data storage systems

Network routers and switches
