Trade Name:STM32F407IGH6
Data Manual:
STM32F407IGH6.pdf
Brand:ST
Particular Year:23+

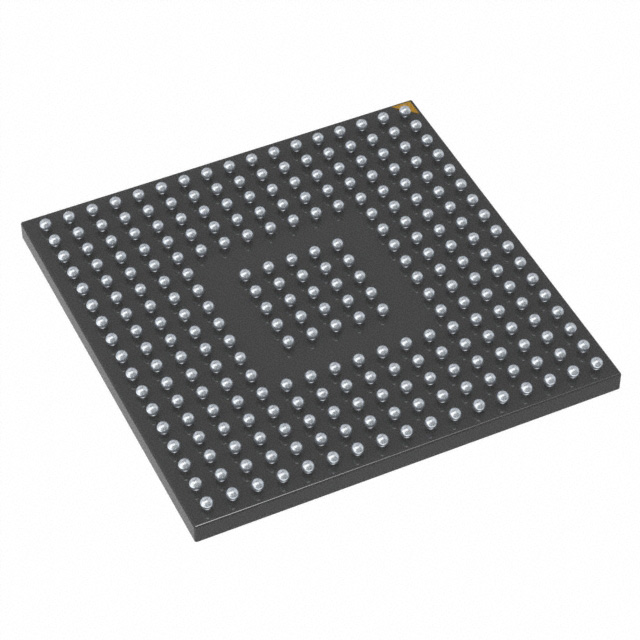

Package:201-UFBGA
Delivery Date:New original
Stock: 2000pcs
The STM32F407IGH6 device is based on a high-performance ARM® Cortex-M4 32-bit RISC core and operates at up to 168MHz. The MCU has 1MB of on-chip flash memory, 192KB of SRAM, and 15 communication interfaces.
specification
Core processor: ARM® Cortex®-M4
Kernel specification: 32-bit single-core
Speed: 168MHz
Connectivity: CANbus, DCMI, EBI/EMI, Ethernet, I²C, IrDA, LINbus, SPI, ART/USART, USB OTG
Peripheral: Undervoltage detection/reset, DMA, I²S, LCD, POR, PWM, WDT
Number of I/ OS: 140
Program storage capacity: 1MB (1M x 8)
Program memory type: Flash
EEPROM capacity: -
RAM size: 192K x 8
Voltage - power supply (Vcc/Vdd) : 1.8V ~ 3.6V
Data converter: A/D 24x12b; D/A 2x12b
Oscillator type: Internal
Operating temperature: -40°C ~ 85°C (TA)
Mounting type: Surface mount type
Package/case: 201-UFBGA
Supplier Device package: 176+25UFBGA (10x10)
Basic product number: STM32F407
Model
Brand
Package
Quantity
Describe

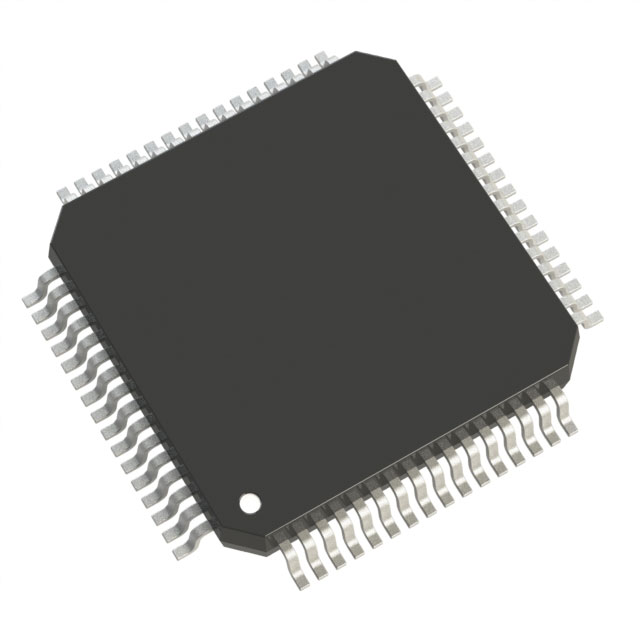

Microchip
TQFP-64
2000
With floating point arithmetic unit (FPU) and the security of hardware PIC32CX micro controller
ST
UFQFPN-48
13000
ARM Microcontrollers - MCU Ultra-low-power Arm Cortex-M0+ MCU 32-Kbytes of Flash , 32 MHz CPU
