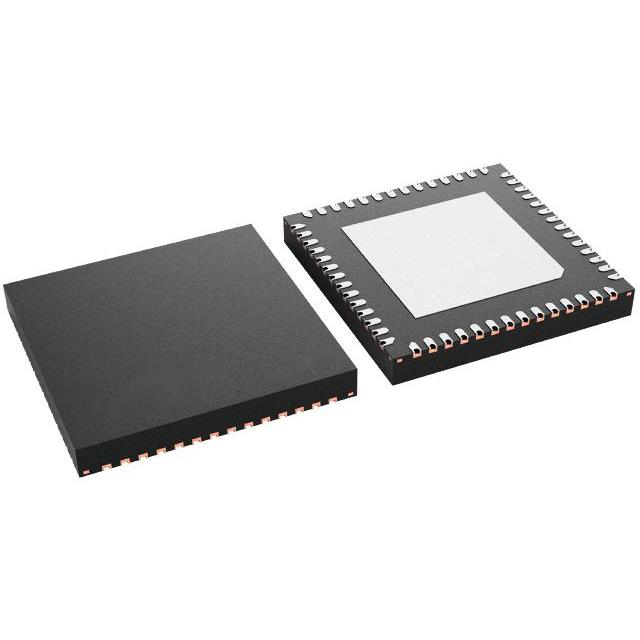

DRV8714SQRVJRQ1 is highly integrated, multi-channel gate drivers intended for driving multiple motors or loads.

Features

AEC-Q100 qualified for automotive applications

Temperature grade 1: - -40°C to +125*C, TA

Multi-channel half-bridge gate drivers

Pin to pin 4 and 8 half-bridge driver variants

4.9-V to 37-V (40-V abs. max) operating range

4 PWM inputs with output mapping

Tripler charge pump for 100% PWM

Half-bridge, H-bridge, and SPI control modes

Smart multi stage gate drive architecture

Adjustable slew rate control

Adaptive propagation delay control

50-μA to 62-mA peak source current output

50-μA to 62-mA peak sink current output

Integrated dead-time handshaking

2x wide common mode current shunt amplifiers

Supports inline, high-side, or low-side

Adjustable gain settings (10, 20, 40, 80 VN)

Multiple interface options available

SPI: Detailed configuration and diagnostics

H/W: Simplified control and less MCU pins

Compact VQFN packages with wettable flanks

Integrated protection features

Dedicated driver disable pin

Low lq, sleep mode motor braking

Supply and regulator voltage monitors

MOSFET Vps overcurrent monitors

MOSFET Vss gate fault monitors

Charge pump for reverse polarity MOSFET

Ofline open load and short circuit diagnostics

Device thermal warning and shutdown

Window watchdog timer

Fault condition interrupt pin

Applications

Automotive brushed DC motors

Power seat modules

Power trunk and lift gate

Door module

Body control modules

Power sunroof

Transmission and engine control modules
