UCC27212AQDDARQ1 is based on thepopular MOSFET drivers,offers extended operating range allthe way down to 5 V which helps lower power losses.

Features

5-V Turn-off Under Voltage Lockout (UVLO)

Drives Two N-Channel MOSFETs in High-Side and Low-Side Configuration With Independent Inputs

Maximum Boot Voltage 120-V DC

4-A Sink, 4-A Source Output Currents

0.9-Ω Pullup and Pulldown Resistance

Input Pins Can Tolerate –10 V to +20 V and are Independent of Supply Voltage Range

TTL Compatible Inputs

5-V to 17-V VDD Operating Range, (20-V ABSMaximum)

7.2-ns Rise and 5.5-ns Fall Time With 1000-pFLoad

Fast Propagation Delay Times (20-ns typical)

4-ns Typical Delay Matching

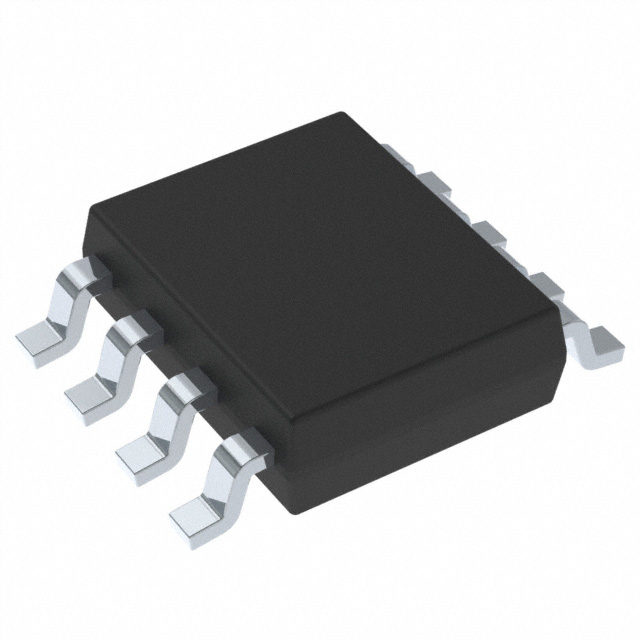

Available in the SOIC8(Powerpad) package

Applications

Power Supplies in Automotive Applications

Half-Bridge and Full-Bridge Converters

High-Voltage Synchronous-Buck Converters

Two-Switch Forward Converters

Push-Pull and Active-Clamp Forward Converters

Class-D Audio Amplifiers
